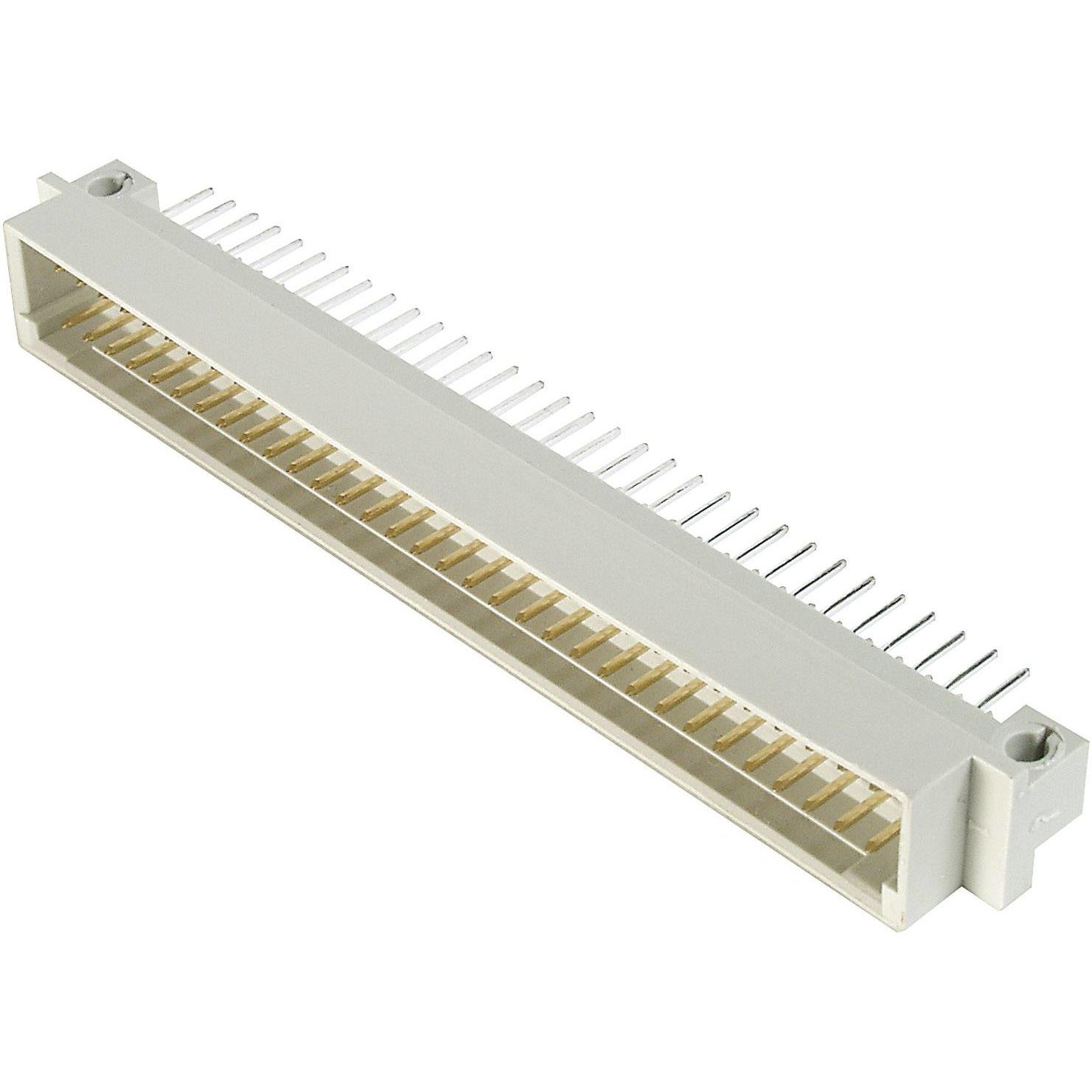

ASSMANN WSW Components A-CM64ACT

安装类型

BOARD

Number of pins

64

RoHS-compliant

有

Current load capacity

2A

Pins

64 (a+c)

Certification marks

DIN 41612

Nominal current (details)

2A

Nominal voltage (details)

250 V/A

Contact surface

Gold plated

Total no. of pins

64

Dim

(L x W x H) 11.1 x 94 x 13.7 mm

Contact Materials

Copper alloy

Content

1pc(s)

Manufacturer part #

A-CM64ACT

Case material

PBT, UL94V-0

Factory colour

Grey

Connections

Soldering

Pins per row

32

Nominal current - rounded value

2A

Nominal current

2A

CS

2.54mm

No. of rows

3

Connector orientation

Perpendicular (to the PCB)

Contact Finish Mating

AU ON NI

Body Length

3.701 inch

Insulator Material

聚对苯二甲酸丁二醇酯

Operating Temperature-Min

-55 °C

Operating Temperature-Max

125 °C

Rohs Code

有

Manufacturer Part Number

A-CM64ACT

Mounting Styles

STRAIGHT

Number of Rows Loaded

2

Manufacturer

ASSMANN WSW components GmbH

Part Life Cycle Code

活跃

Ihs Manufacturer

ASSMANN WSW COMPONENTS GMBH

Risk Rank

5.77

Manufacturer Series

A-C-M

JESD-609代码

e3

Connector type

Multipole connector, straight

类型

Straight

附加功能

QUALITY CLASS 3

子类别

头部和边缘连接器

符合 DIN 标准

YES

触头总数

64

端子间距

2.54 mm

Reach合规守则

compliant

参考标准

UL,VDE

可靠性

COMMERCIAL

PCB行数

3

PCB接触图案

RECTANGULAR

本体宽度

0.437 inch

触点性别

MALE

本体深度

0.512 inch

额定电流（信号）

2 A

触点样式

SQ PIN-SKT

触点电阻

40 mΩ

配置

(a+c)

绝缘电阻

1000000000000 Ω

配套触点间距

0.1 inch

主体/外壳样式

RECEPTACLE

终端类型

SOLDER

偏振键

ENDS

介电耐压

1550VAC V

PCB 触点行距

2.54 mm

耐用性

400 Cycles

触点表面处理 终端

Tin (Sn) - with Nickel (Ni) barrier

插入力-最大值

.9452 N

拉坯力 - 最小值

.139 N

配套接点行距

0.2 inch

Mating cycles

50

载入的行名称

A,C

Test voltage

1kV

端子长度

0.138 inch

职系

III

DIN standard

C

长度

11.1mm

高度

13.7mm

宽度

94mm

电镀厚度

闪烁英寸
