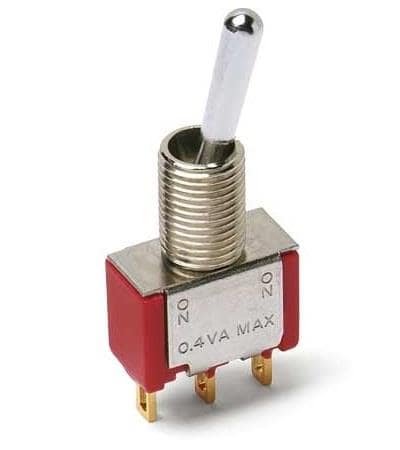

C&K Components 7107SDV3QE

触点镀层

Silver

底架

Brackets

房屋材料

不锈钢

终端数量

3

执行器材料

Brass

Contact Materials

Silver

ElectricalLife

40 kcycles

Operating Temperature (Max)

85 °C

Voltage - Rated (AC)

250 V

Operating Temperature (Min)

-30 °C

Operating Temperature Max Deg. C

85C

Switch Configuration

保持通电-瞬时断开-断开

Body Orientation

Straight

Seal Description

EPOXY

Product Depth (mm)

8.13(mm)

Actuator Length (mm)

12.45(mm)

Operating Temp Range

-30C to 85C

Dielectric Strength

1000VRMS

Seal Location

TERMINALS

Actuator Style

ROUND LEVER

ActuatorColor

亮铬

Operating Temperature Min Deg. C

-30C

AC Voltage Rating (Max)

250

Pole Throw Configuration

单刀双掷

DC Voltage Rating (Max)

28

Bushing Size

0.28 in

Maximum Operating Temperature

+ 85 C

Minimum Operating Temperature

- 30 C

Factory Pack QuantityFactory Pack Quantity

80

Mounting Styles

通孔

Manufacturer

C&K Switches

Voltage Rating DC

28 VDC

Illuminated

Non-Illuminated

Terminal Seal

Sealed

Brand

C&K

RoHS

Details

Actuator

Toggle

包装

Bulk

系列

7000

终端

PC引脚

子类别

Switches

额定电流

5 A

方向

Straight

深度

8.13 mm

终端样式

PC引脚

开关功能

ON - OFF - (ON)

绝缘电阻

1000(Mohm)

投掷配置

单刀双掷

最大额定电压（直流）

28 V

触点形式

SPST

螺纹尺寸

1/4-40

产品类别

拨动开关

最大额定电流

5 A

套管类型

THREADED

安装角

Vertical

产品类别

拨动开关

产品长度(mm)

16.26(mm)

长度

16.26 mm

执行器长度

12.45 mm

产品高度(mm)

31.24(mm)

辐射硬化

无

RoHS状态

符合RoHS标准

可燃性等级

UL 94 V-0
