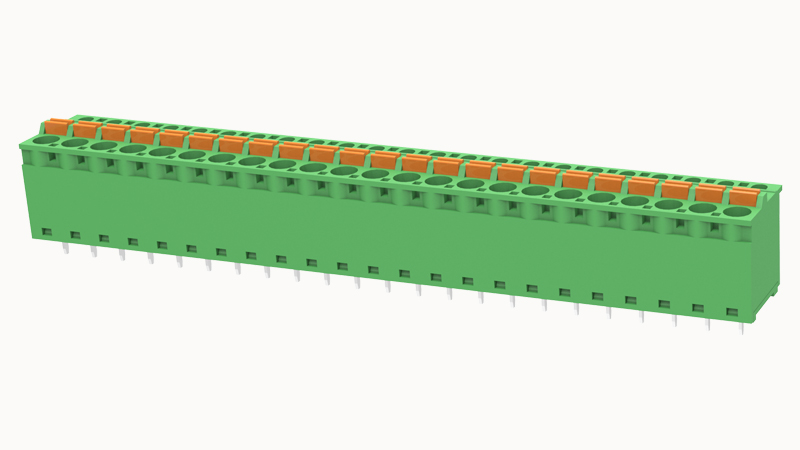

DEGSON 2EDGKDSV-5.0-23P

Conductor cross section solid

0.2~2.5mm²

Conductor cross section flexible

0.2~2.5mm²

AWG

26~12AWG

Strip length

9mm

Rated voltage (B)

300V

Rated current (B)

12A

Rated voltage(III/2)

320V

Rated power frequency voltage(1min)

2.5KV

Connection direction

90°

Type of installation

PCB welding

Pin arrangement

Double-row in a straight line

Number of potentials

23

Pluggable or not

no

Environmental items

Compliant with REACH/RoHS

Contact Materials

copper

Contact point metal surface

tin-plated

Insulation Materials

PA66

Insulating material group

Ⅰ

Test Specification

IEC61984/ UL1059

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Screwdriver

/

Operating tool

/

Coding strip

/

Bridge

/

Marking strip

/

Packing unit

Products weight (without packaging)

Number of rows

1

螺距

5mm

Rated current

20A

Connection method

Push-in spring connection

Rated voltage

320V

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
