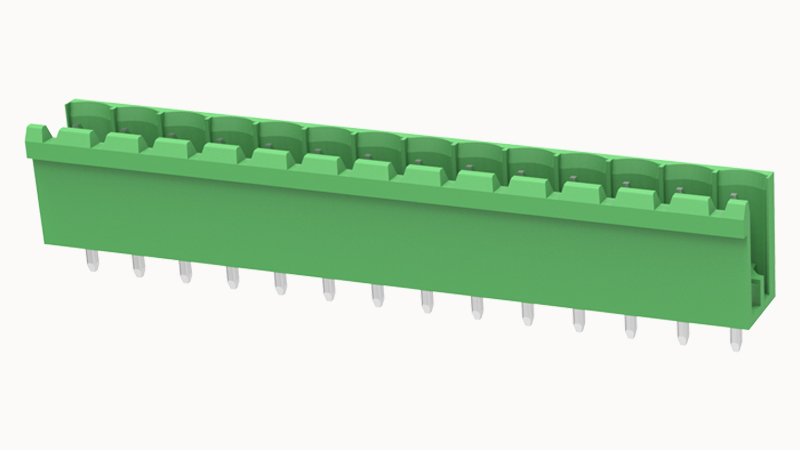

DEGSON 2EDGV-5.0-14P

Rated voltage (B)

300V

Rated voltage (D)

300V

Rated current (B)

15A

Rated current (D)

10A

Rated voltage(III/2)

320V

Rated surge voltage(III/2)

4KV

Connection direction

90°

Type of installation

PCB welding

Pin arrangement

Single row in a straight line

Number of potentials

14

Pluggable or not

有

Environmental items

Compliant with REACH/RoHS

Contact Materials

copper

Contact zone metal surface

tin-plated

Insulation Materials

PA66

Shell color

green

Insulating material group

Ⅰ

Test Specification

IEC61984/ UL1059

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Screwdriver

/

Operating tool

/

Coding strip

/

Bridge

/

Marking strip

/

Packing unit

500

Products weight (without packaging)

5.08

Number of rows

1

螺距

5mm

Rated current

20A

Rated voltage

320V

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
