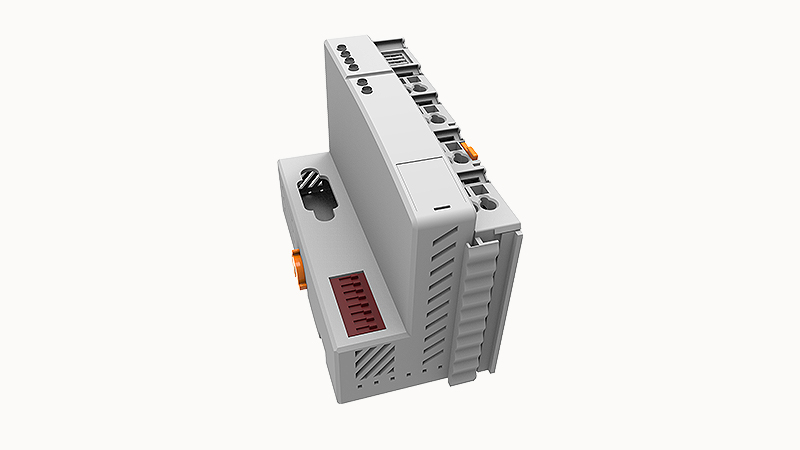

DEGSON Bus IO-DF750-003-11-2001A(H)

材料

PC+PA66

Products weight (without packaging)

122.5

Packing unit

20

IO housing

DF750-200-11-2001A(H)

Connectable guide cross section AWG

28~12AWG

Cross section

0.2~2.5mm²

Power load

10A

Power contacts

2 blade contacts

Strip length

8-9mm

wiring

Spring type wiring technology

Ambient temperature (storage/transportation)

-40℃～+70℃

Ambient temperature (operation)

-40℃～+70℃

label

Laser screen printing

Side by side installation

Dovetail groove clamping

installation

DIN35 rail

structure type

Compact terminal module housing with signal LED

color

C1 gray

Rated current

Power: 24VBus connector: 5V

length

93.5mm

高度

69mm

width

48mm

PCB thickness

1.0mm
