DEGSON DG100-A-08P
- 收藏
- 对比
DG100-A-08P
637-DG100-A-08P
端子板 - 隔板块
--
大陆
立即发货

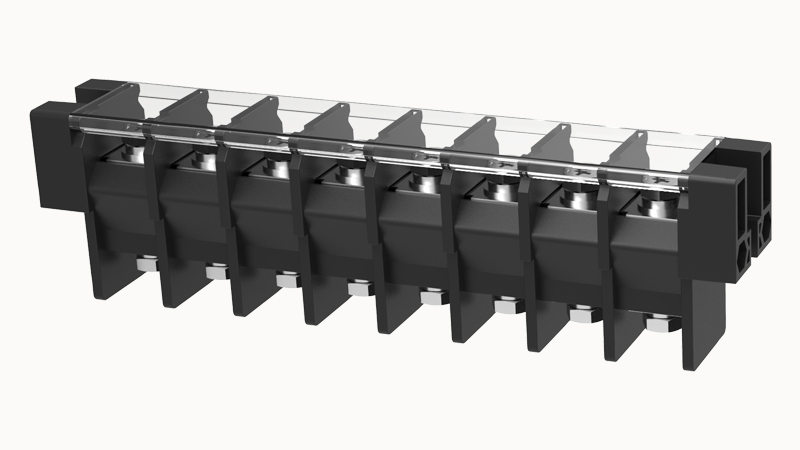

Up and down transfer terminal, nominal current: 100A. Rated voltage (UL): 600V, rated cross section: 10~2AWG, needle pitch: 21mm, color: black, contact surface: tin
1最小包装量--
请发送询价，我们将立即回复。
在线咨询
DG100-A-08P详情
DEGSON DG100-A-08P重要参数规格及、参数值，及相似型号如下：
- 参数名参数值全选
- 参数名参数值全选
torque
5N.m
Connectable conductor cross section
10~2AWG
spacing
21mm
Rated voltage (B)
600V
Rated voltage (C)
600V
Rated voltage (D)
600V
Rated current (B)
100A
Rated current (D)
5A
Rated current (C)
100A
Type of installation
panel
Pin arrangement
Single row in a straight line
Screwdriver
Phillips screwdriver
Number of potentials
8
Pluggable or not
no
Environmental items
Compliant with REACH/RoHS
Contact Materials
copper
Contact point metal surface
Nickel plating
Insulation Materials
PBT
Insulating material group
Ⅲa
Test Specification
UL1059
Ambient temperature (operation)
-40℃~120℃(depending on derating curve)
Packing unit
10
Products weight (without packaging)
353.8
Number of rows
1
screw thread
M6
Connection method
Screw connection
Flammability rating
UL94V-0
