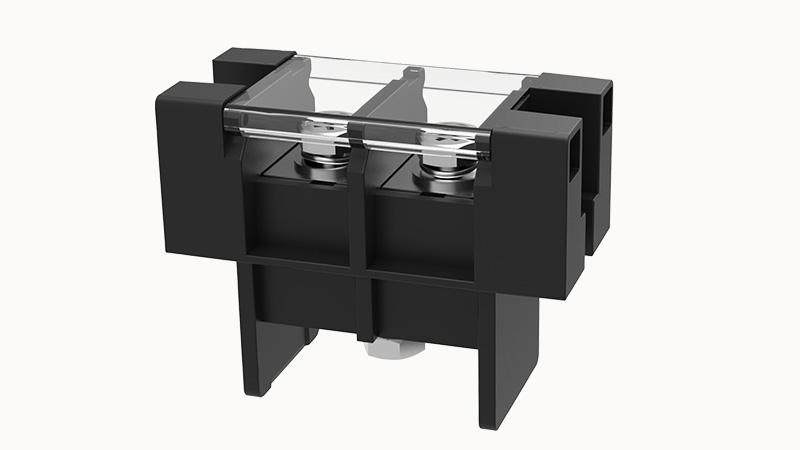

DEGSON DG100D-A-02P

torque

5N.m

Connectable conductor cross section

10~2AWG

Rated voltage (B)

600V

Rated voltage (C)

600V

Rated voltage (D)

600V

Rated current (B)

100A

Rated current (D)

5A

Rated current (C)

100A

Type of installation

PCB welding

Pin arrangement

Single row in a straight line

Screwdriver

Phillips screwdriver

Number of potentials

2

Pluggable or not

no

Environmental items

Compliant with REACH/RoHS

Contact Materials

Copper alloy

Contact point metal surface

Nickel plating

Insulation Materials (main class)

PA66+GF

Insulating material group

Ⅲa

Test Specification

UL1059

Ambient temperature (operation)

-40℃~105℃

螺距

42mm

screw thread

M6

Connection method

screw connection

Flammability rating

UL94V-0
