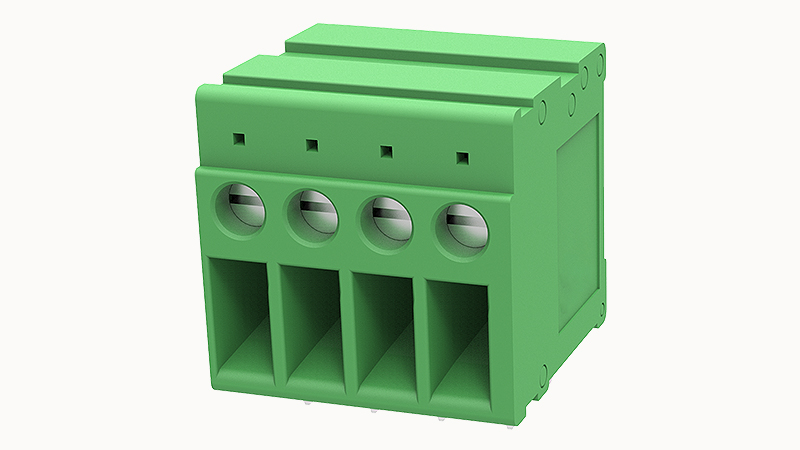

DEGSON DG107R-6.35-04P

Conductor cross section solid

0.5~6mm²

Conductor cross section flexible

0.5~6.0mm²

AWG

26~10AWG

Torque

0.5N.m

Strip length

14mm

Rated voltage (B)

300V

Rated voltage (D)

300V

Rated current (B)

30A

Rated current (D)

10A

Insulation Materials

PA66

Insulating material group

Ⅰ

Test Specification

IEC60947/UL1059

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Operating tool

/

Coding strip

/

Bridge

/

Marking strip

/

Packing unit

140

Products weight (without packaging)

31.571428571429

Rated voltage(III/3)

320V

Rated voltage(III/2)

320V

Rated voltage(II/2)

630V

Rated surge voltage(III/3)

4KV

Rated surge voltage(III/2)

4KV

Rated surge voltage(II/2)

4KV

Type of installation

PCB welding

Pin arrangement

Double-row in a straight line

Screwdriver

Slotted screwdriver

Number of potentials

4

Pluggable or not

no

Environmental items

Compliant with REACH/RoHS

Contact Materials

copper

Contact point metal surface

tin-plated

Number of rows

1

螺距

6.35mm

UL可燃性规范

UL94V-0

Rated current

41A

screw thread

M3

Connection method

Screw connection

Rated voltage

320V

过程

Wave soldering/manual soldering
