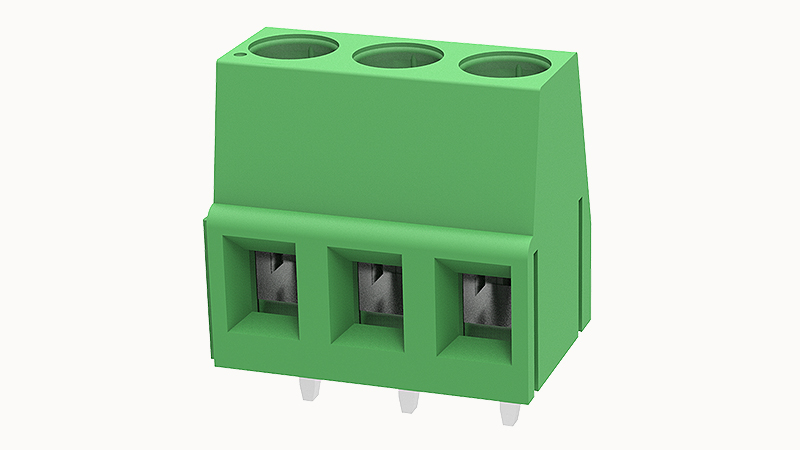

DEGSON DG128-5.08-1000A(H)-03P

Conductor cross section solid

0.2~2.5mm²

Conductor cross section flexible

0.2~2.5mm²

AWG

30~12AWG

Torque

0.5N.m

Strip length

6mm

Rated voltage (B)

300V

Rated voltage (D)

300V

Rated current (B)

20A

Rated current (D)

10A

Rated voltage(III/3)

250V

Rated voltage(III/2)

400V

Rated voltage(II/2)

630V

Rated surge voltage(III/3)

4KV

Rated surge voltage(III/2)

4KV

Rated surge voltage(II/2)

4KV

Connection direction

0°

Type of installation

PCB welding

Pin arrangement

Single row in a straight line

Screwdriver

Slotted screwdriver

Number of potentials

3

Pluggable or not

no

Environmental items

Compliant with REACH/RoHS

Contact Materials

Copper alloy

Contact point metal surface

tin-plated

Insulation Materials

PA66

Insulating material group

Ⅰ

Test Specification

IEC60947/UL1059

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Coding strip

/

Bridge

DG019-5.0

Marking strip

/

Operating tool

/

Packing unit

200

Products weight (without packaging)

3.99

Number of rows

1

螺距

5.08mm

UL可燃性规范

UL94V-0

Rated current

18A

screw thread

M3

Connection method

Screw connection

Rated voltage

400V

过程

Wave soldering/manual soldering
