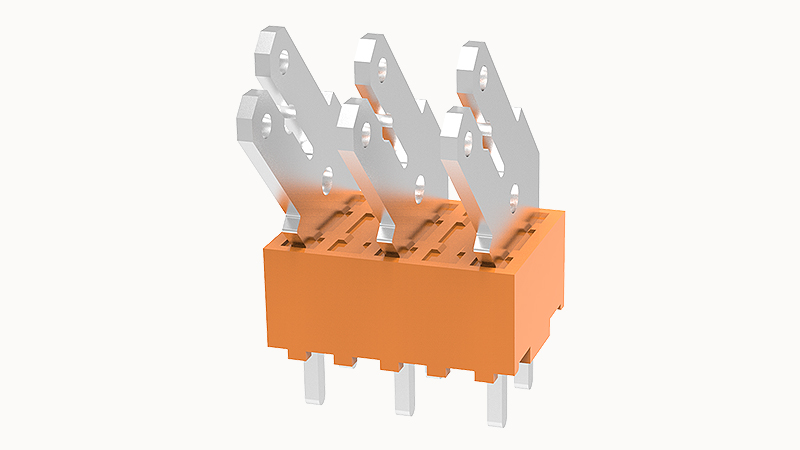

DEGSON DG140S-5.0-03P

Conductor cross section solid

0.5~2.5mm²

Conductor cross section flexible

0.5~2.5mm²

AWG

26~14AWG

Rated voltage (B)

300V

Rated voltage (D)

300V

Rated current (B)

15A

Rated current (D)

10A

Rated voltage(III/2)

630V

Rated power frequency voltage(1min)

3KV

Connection direction

45°

Type of installation

PCB welding

Pin arrangement

Double-row in a straight line

Number of potentials

3

Pluggable or not

no

Environmental items

Compliant with REACH/RoHS

Contact Materials

Copper alloy

Contact point metal surface

tin-plated

Insulation Materials

PA66

Insulating material group

Ⅰ

Test Specification

IEC60998

Ambient temperature (operation)

-40℃~85℃(depending on derating curve)

Coding strip

/

Bridge

/

Marking strip

/

Operating tool

/

Screwdriver

/

Packing unit

#N/A

Products weight (without packaging)

#N/A

Number of rows

1

螺距

5mm

Rated current

24A

Connection method

Quick connection

Rated voltage

630V

过程

Wave soldering/manual soldering

Flammability rating

UL94V-2
