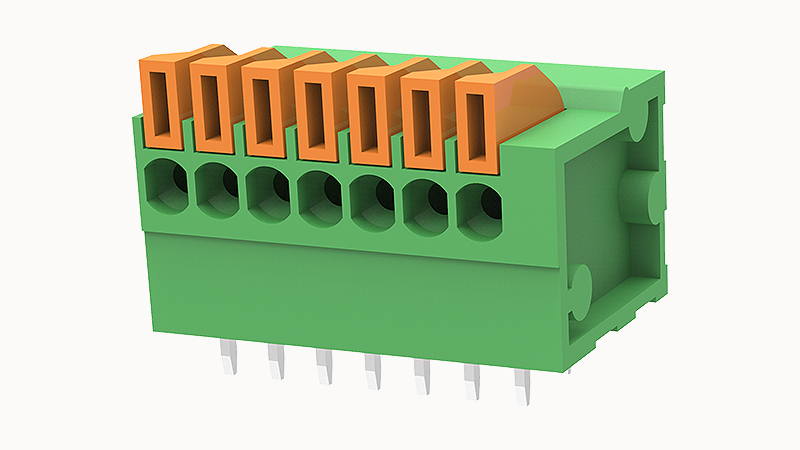

DEGSON DG141R-2.54-07P

Conductor cross section solid

0.2~1.0mm²

Conductor cross section flexible

0.2~1.0mm²

AWG

24~20AWG

Strip length

11mm

Rated voltage (B)

150V

Rated voltage (C)

150V

Rated voltage (D)

150V

Rated current (B)

2A

Rated current (D)

2A

Rated current (C)

2A

Products weight (without packaging)

3.91

Packing unit

800

Screwdriver

/

Operating tool

/

Marking strip

/

Bridge

/

Coding strip

/

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Test Specification

UL1059/IEC60998

Insulating material group

Ⅰ

Insulation Materials

PA66

Contact point metal surface

tin-plated

Contact Materials

Copper alloy

Environmental items

Compliant with REACH/RoHS

Pluggable or not

no

Number of potentials

7

Pin arrangement

Double-row in a straight line

Type of installation

PCB welding

Connection direction

0°

Rated power frequency voltage(1min)

1.25KV

Rated voltage(III/2)

130V

Number of rows

1

螺距

2.54mm

Rated current

6A

Connection method

Push-in spring connection

Rated voltage

130V

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
