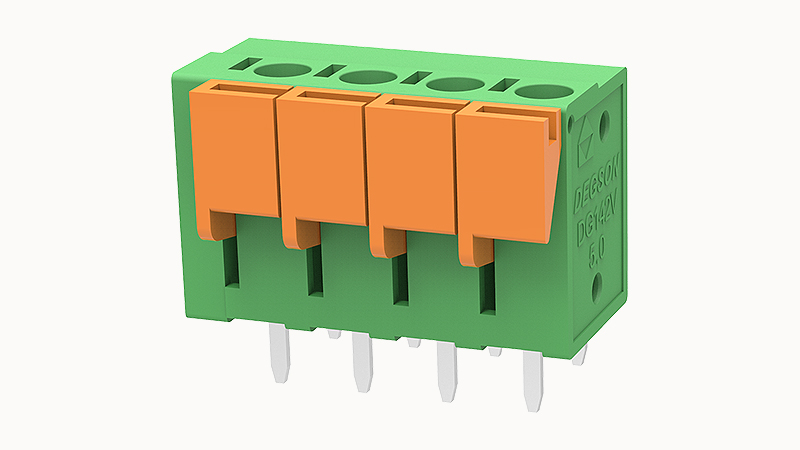

DEGSON DG142V-5.0-04P

Pin arrangement

Double-row in a straight line

Number of potentials

4

Pluggable or not

no

Environmental items

Compliant with REACH/RoHS

Contact Materials

Copper alloy

Contact point metal surface

tin-plated

Insulation Materials

PA66

Insulating material group

Ⅰ

Test Specification

IEC60947/UL1059

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Coding strip

/

Bridge

/

Marking strip

/

Operating tool

/

Screwdriver

/

Packing unit

700

Products weight (without packaging)

4.6

Type of installation

PCB welding

Connection direction

90°

Rated surge voltage(II/2)

4KV

Rated surge voltage(III/2)

4KV

Rated surge voltage(III/3)

4KV

Rated voltage(II/2)

630V

Rated voltage(III/2)

320V

Rated voltage(III/3)

250V

Rated current (B)

10A

Rated voltage (B)

300V

Strip length

10mm

AWG

22~16AWG

Conductor cross section flexible

0.2~1.5mm²

Conductor cross section solid

0.2~1.5mm²

Number of rows

1

螺距

5mm

Rated current

15A

Connection method

Push-in spring connection

Rated voltage

320V

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
