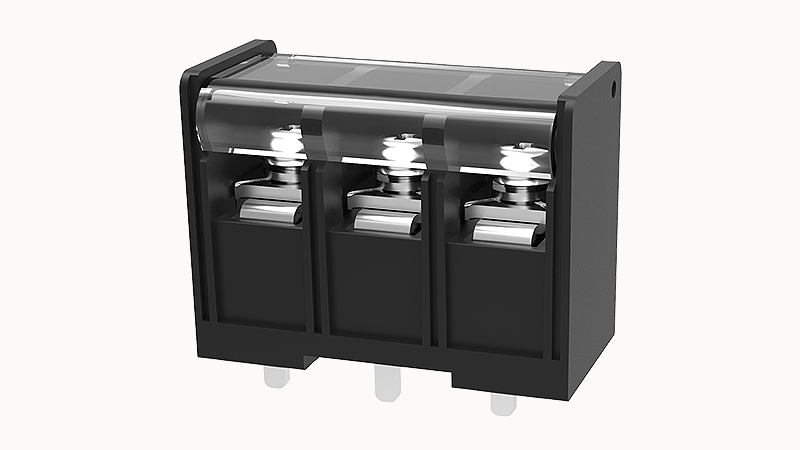

DEGSON DG1450-B-03P

Contact point metal surface

tin-plated

Insulation Materials

PBT

Insulating material group

Ⅲa

Test Specification

UL1059

Ambient temperature (operation)

-40℃~125℃(depending on derating curve)

Packing unit

20

Products weight (without packaging)

73.9

Contact Materials

Copper alloy

Environmental items

Compliant with REACH/RoHS

Pluggable or not

no

Number of potentials

3

Screwdriver

slotted-phillips screwdriver

Pin arrangement

Single row in a straight line

Type of installation

PCB welding

Rated current (C)

50A

Rated current (D)

10A

Rated current (B)

50A

Rated voltage (D)

300V

Rated voltage (C)

300V

Rated voltage (B)

300V

AWG

22~8AWG

Conductor cross section flexible

0.5~10mm²

Conductor cross section solid

0.5~16mm²

Number of rows

1

螺距

14.5mm

Rated current

Rated current;76A

screw thread

M5

Connection method

Screw connection

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
