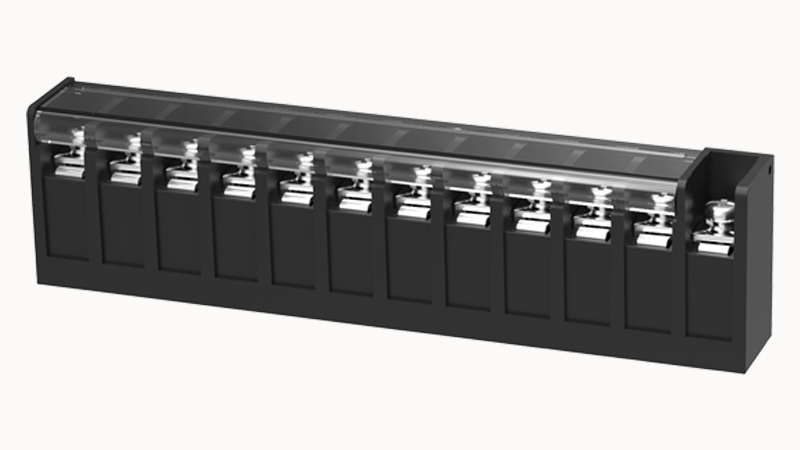

DEGSON DG1450H-B-10A(H)-12P

Conductor cross section solid

0.5~10mm²

Conductor cross section flexible

0.5~10mm²

AWG

22~8AWG

Rated voltage (B)

600V

Rated voltage (C)

600V

Rated voltage (D)

600V

Rated current (B)

40A

Rated current (D)

5A

Rated current (C)

40A

Type of installation

PCB welding

Pin arrangement

Single row in a straight line

Screwdriver

slotted-phillips screwdriver

Number of potentials

12

Products weight (without packaging)

420.9

Packing unit

5

Ambient temperature (operation)

-40℃~125℃(depending on derating curve)

Test Specification

UL1059

Insulating material group

Ⅲa

Insulation Materials

PBT

Contact point metal surface

tin-plated

Contact Materials

Copper alloy

Environmental items

Compliant with REACH/RoHS

Pluggable or not

no

Number of rows

1

螺距

14.5mm

Rated current

Rated current;76A

screw thread

M5

Connection method

Screw connection

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
