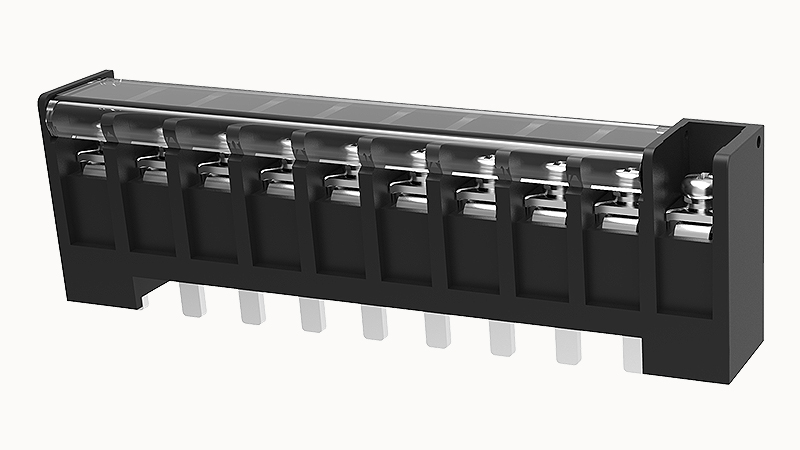

DEGSON DG1450H-B-20A(H)-06P

Ambient temperature (operation)

-40℃~125℃(depending on derating curve)

Packing unit

5

Products weight (without packaging)

146.7

Test Specification

UL1059

Insulating material group

Ⅲa

Insulation Materials

PBT

Contact point metal surface

tin-plated

Contact Materials

Copper alloy

Environmental items

Compliant with REACH/RoHS

Pluggable or not

no

Number of potentials

10

Screwdriver

slotted-phillips screwdriver

Pin arrangement

Single row in a straight line

Type of installation

PCB welding

Rated current (C)

57A

Rated current (D)

5A

Rated current (B)

57A

Rated voltage (D)

600V

Rated voltage (C)

600V

Rated voltage (B)

600V

AWG

22~6AWG

Conductor cross section flexible

0.5~16mm²

Conductor cross section solid

0.5~16mm²

Number of rows

1

螺距

14.5mm

UL可燃性规范

UL94V-0

Rated current

Rated current;57A

screw thread

M5

Connection method

Screw connection

过程

Wave soldering/manual soldering
