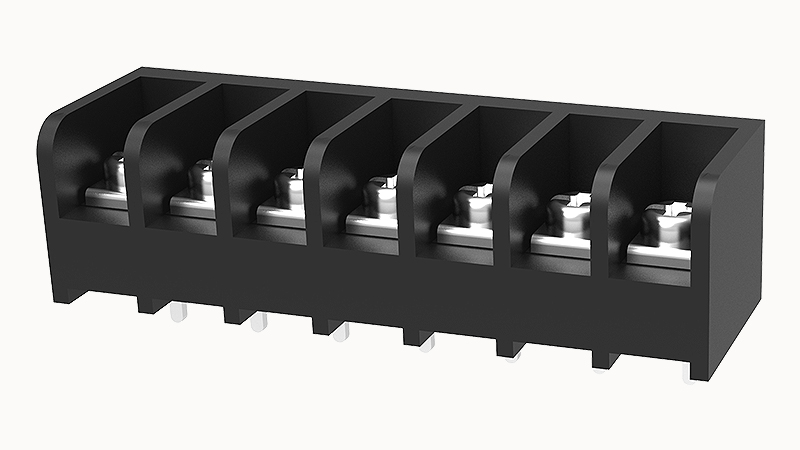

DEGSON DG16S-B-07P

AWG

22~16AWG

Rated voltage (B)

300V

Rated voltage (C)

150V

Rated voltage (D)

300V

Rated current (B)

10A

Rated current (D)

10A

Rated current (C)

10A

Pin arrangement

Single row in a straight line

Number of potentials

7

Pluggable or not

no

Environmental items

Compliant with REACH/RoHS

Contact Materials

Copper alloy

Contact point metal surface

tin-plated

Insulation Materials

PA66

Insulating material group

Ⅰ

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Packing unit

350

Products weight (without packaging)

9.77

Torque

0.4N.m

Type of installation

PCB welding

Screwdriver

slotted-phillips screwdriver

Test Specification

UL1059

Number of rows

1

螺距

6.35mm

Rated current

Rated current;17.5A

screw thread

M2.5

Connection method

Screw connection

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
