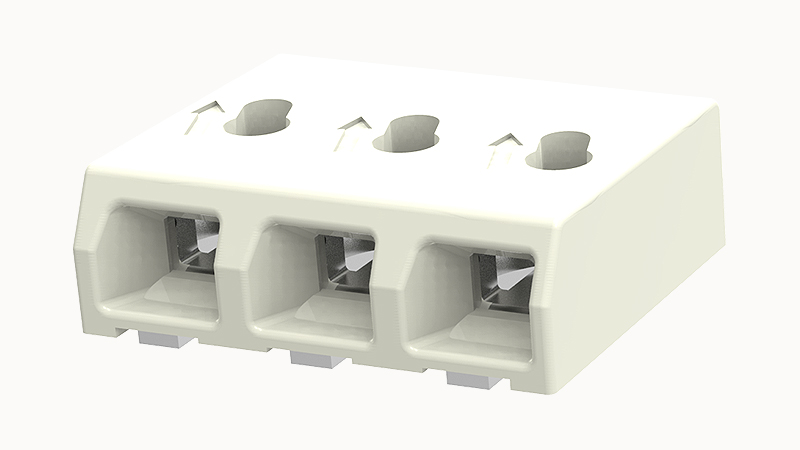

DEGSON DG2001-3.0-03P

Conductor cross section solid

0.14~0.34mm²

AWG

26~22AWG

Strip length

6mm

Rated voltage (B)

300V

Rated current (B)

3A

Rated voltage(III/3)

32V

Rated voltage(III/2)

160V

Rated voltage(II/2)

160V

Rated surge voltage(III/3)

2.5KV

Rated surge voltage(III/2)

2.5KV

Rated surge voltage(II/2)

2.5KV

Connection direction

0°

Type of installation

PCB welding

Pin arrangement

Double-row in a straight line

Number of potentials

3

Pluggable or not

no

Environmental items

Compliant with REACH/RoHS

Contact Materials

Copper alloy

Contact point metal surface

tin-plated

Insulation Materials

High temperature resistant materials

Insulating material group

Ⅲa

Test Specification

IEC60947/UL1977

Ambient temperature (operation)

-40℃~130℃(depending on derating curve)

Coding strip

/

Bridge

DG043-3.0

Marking strip

/

Operating tool

DG044

Screwdriver

/

Packing unit

1750

Products weight (without packaging)

0.34

Number of rows

1

螺距

3mm

Rated current

3A

Connection method

Push-in spring connection

Rated voltage

160V

过程

Reflow soldering/wave soldering/manual soldering

Flammability rating

UL94V-0
