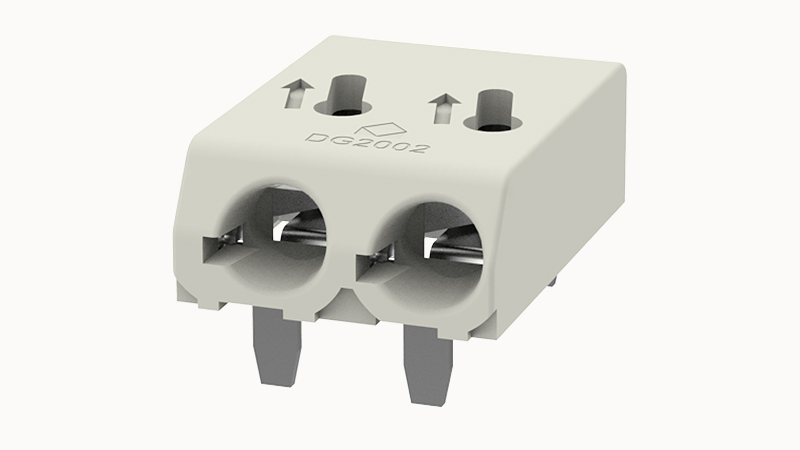

DEGSON DG2002-4.0-300A(H)-02P

Rated current (B)

9A

Rated voltage(III/3)

32V

Rated voltage(III/2)

160V

Rated voltage(II/2)

160V

Rated surge voltage(III/3)

4KV

Rated surge voltage(III/2)

4KV

Rated surge voltage(II/2)

4KV

Connection direction

0°

Number of potentials

2

Pluggable or not

no

Environmental items

Compliant with REACH/RoHS

Insulation Materials

High temperature resistant materials

Insulating material group

Ⅲa

Test Specification

IEC60947/UL1977

Ambient temperature (operation)

-40℃~130℃(depending on derating curve)

Coding strip

/

Bridge

DG027-4.0

Marking strip

/

Operating tool

DG028

Screwdriver

/

Packing unit

0

Products weight (without packaging)

0.93

Number of rows

1

螺距

4mm

Rated current

9A

Rated voltage

160V

Flammability rating

UL94V-0
