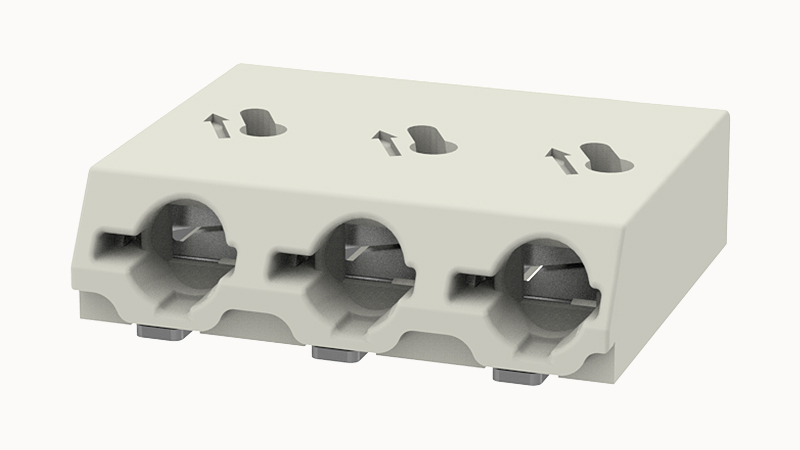

DEGSON DG2003-6.0-03P

Conductor cross section solid

0.5~1.5mm²

Conductor cross section flexible

0.5~1.5mm²

AWG

20~16AWG

Strip length

10mm

Rated voltage (B)

300V

Rated current (B)

10A

Rated voltage(III/3)

200V

Rated voltage(III/2)

200V

Rated voltage(II/2)

320V

Rated surge voltage(III/3)

4KV

Rated surge voltage(III/2)

4KV

Rated surge voltage(II/2)

4KV

Connection direction

0°

Type of installation

PCB welding

Pin arrangement

Double-row in a straight line

Number of potentials

3

Pluggable or not

no

Environmental items

Compliant with REACH/RoHS

Contact Materials

Copper alloy

Contact point metal surface

tin-plated

Insulation Materials

High temperature resistant materials

Insulating material group

Ⅲa

Test Specification

IEC60947/UL1977

Ambient temperature (operation)

-40℃~130℃(depending on derating curve)

Coding strip

/

Bridge

/

Marking strip

/

Operating tool

/

Screwdriver

/

Packing unit

450

Products weight (without packaging)

3

Number of rows

1

螺距

6mm

Rated current

17.5A

Connection method

Push-in spring connection

Rated voltage

200V

过程

Reflow soldering/wave soldering/manual soldering

Flammability rating

UL94V-0
