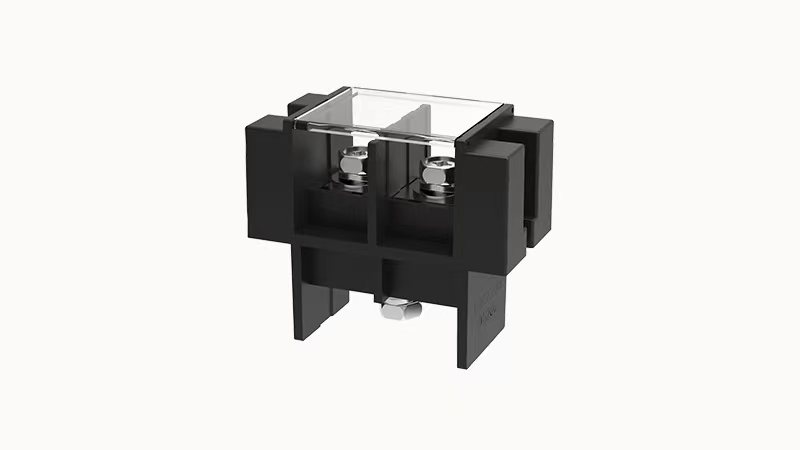

DEGSON DG200D-A-02P-13-00Z(H)-02P

AWG

2~3/0AWG

Torque

6.0N.m

Rated voltage (B)

600V

Rated voltage (C)

600V

Rated voltage (D)

600V

Rated current (B)

200A

Rated current (D)

5A

Rated current (C)

200A

Type of installation

PCB welding

Pin arrangement

Single row in a straight line

Screwdriver

Phillips screwdriver

Number of potentials

2

Pluggable or not

no

Environmental items

Compliant with REACH/RoHS

Contact Materials

copper

Contact point metal surface

Nickel plating

Insulation Materials (main class)

PA66+GF

Insulating material group

Ⅲa

Test Specification

UL1059

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Packing unit

12

Products weight (without packaging)

180

螺距

27mm

screw thread

M8

Connection method

screw connection

Flammability rating

UL94V-0
