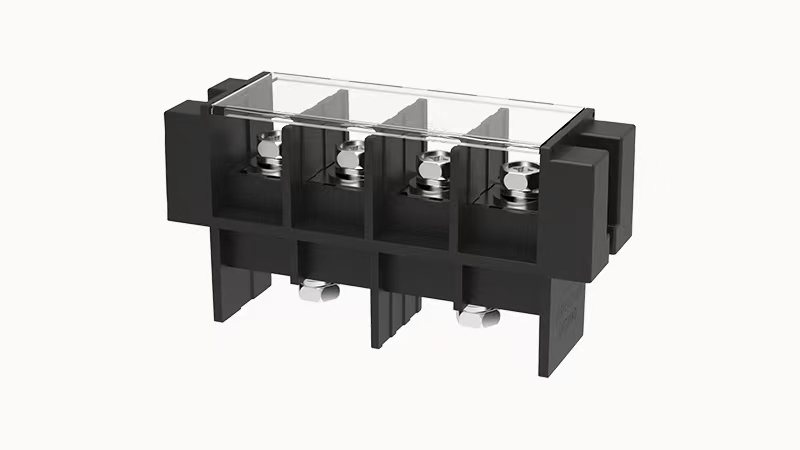

DEGSON DG200D-A-04P-13-00Z(H)-04P

AWG

2~3/0AWG

Torque

6.0N.m

Rated voltage (B)

600V

Rated voltage (C)

600V

Rated voltage (D)

600V

Rated current (B)

200A

Rated current (D)

5A

Packing unit

6

Products weight (without packaging)

321

Rated current (C)

200A

Type of installation

PCB welding

Pin arrangement

Single row in a straight line

Screwdriver

Phillips screwdriver

Number of potentials

4

Pluggable or not

no

Environmental items

Compliant with REACH/RoHS

Contact Materials

copper

Contact point metal surface

Nickel plating

Insulation Materials (main class)

PA66+GF

Insulating material group

Ⅲa

Test Specification

UL1059

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

螺距

27mm

screw thread

M8

Connection method

screw connection

Flammability rating

UL94V-0
