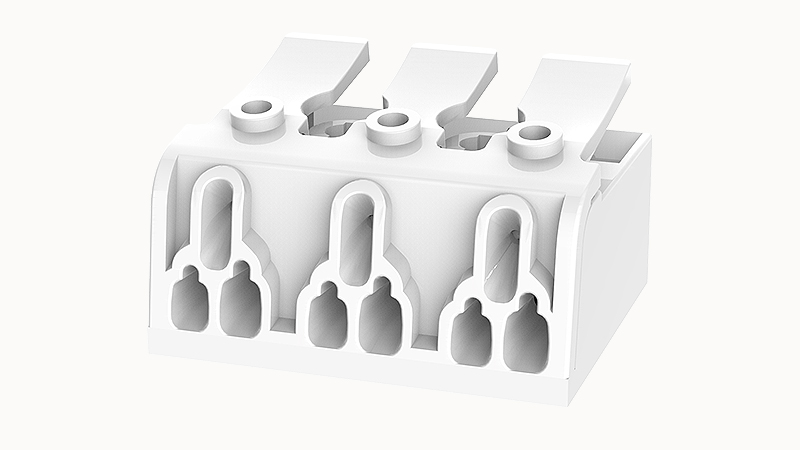

DEGSON DG238-10.0-03P

AWG

22~14AWG

Strip length

9mm

Rated voltage (B)

600V

Rated current (B)

20A

Rated voltage(III/2)

450V

Rated power frequency voltage(1min)

2.5KV

Number of potentials

3

Pluggable or not

no

Environmental items

Compliant with REACH/RoHS

Contact Materials

Copper alloy

Contact point metal surface

Nickel plating

Insulation Materials

PA66

Insulating material group

Ⅰ

Test Specification

UL1059/IEC60998

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Coding strip

/

Bridge

/

Marking strip

/

Operating tool

/

Screwdriver

/

Packing unit

50

Products weight (without packaging)

9.2

Number of rows

1

螺距

10mm

Rated current

Rated current;24A

Connection method

Push-in spring connection

Flammability rating

UL94V-2
