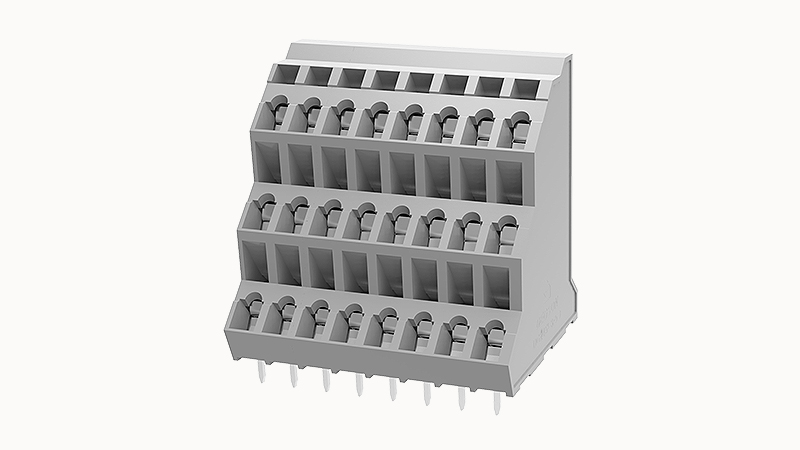

DEGSON DG245H3-5.0-24P

Products weight (without packaging)

33.26

Packing unit

60

Screwdriver

/

Operating tool

/

Marking strip

/

Bridge

/

Coding strip

/

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Test Specification

UL1059/IEC60998

Insulating material group

Ⅰ

Insulation Materials

PA66

Contact point metal surface

tin-plated

Contact Materials

Copper alloy

Environmental items

Compliant with REACH/RoHS

Pluggable or not

no

Number of potentials

24

Pin arrangement

Three rows in a straight line

Type of installation

PCB welding

Connection direction

45°

Rated power frequency voltage(1min)

2.5KV

Rated voltage(III/2)

450V

Rated current (D)

10A

Rated current (B)

10A

Rated voltage (D)

300V

Rated voltage (B)

300V

Strip length

6mm

AWG

28~12AWG

Conductor cross section flexible

0.2~2.5mm²

Conductor cross section solid

0.2~2.5mm²

Number of rows

3

螺距

5mm

UL可燃性规范

UL94V-0

Rated current

18A

Connection method

spring-cage connection

Rated voltage

450V

过程

Wave soldering/manual soldering
