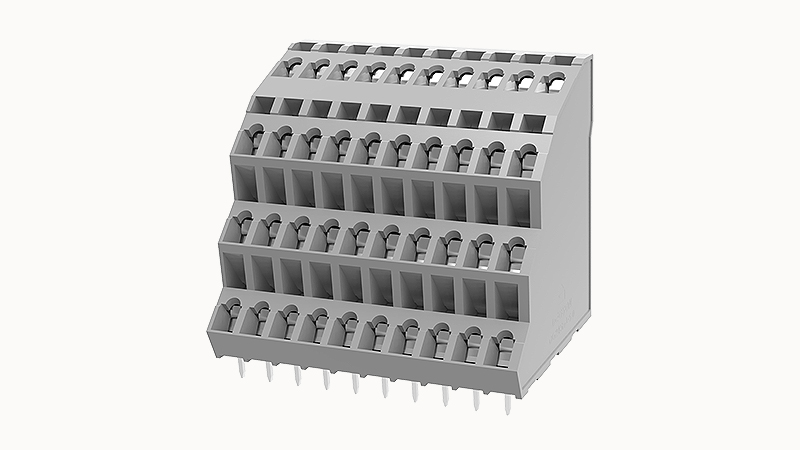

DEGSON DG245H4-5.0-40P

Conductor cross section solid

0.2~2.5mm²

Conductor cross section flexible

0.2~2.5mm²

AWG

28~12AWG

Strip length

6mm

Rated voltage (B)

300V

Rated voltage (D)

300V

Rated current (B)

10A

Rated current (D)

10A

Rated voltage(III/2)

450V

Rated power frequency voltage(1min)

2.5KV

Connection direction

45°

Type of installation

PCB welding

Pin arrangement

Four rows in a straight line

Number of potentials

40

Pluggable or not

no

Environmental items

Compliant with REACH/RoHS

Contact Materials

Copper alloy

Contact point metal surface

tin-plated

Insulation Materials

PA66

Insulating material group

Ⅰ

Test Specification

UL1059/IEC60998

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Coding strip

/

Bridge

/

Marking strip

/

Operating tool

/

Screwdriver

/

Packing unit

45

Products weight (without packaging)

66.67

Number of rows

4

螺距

5mm

Rated current

18A

Connection method

Push-in spring connection

Rated voltage

450V

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
