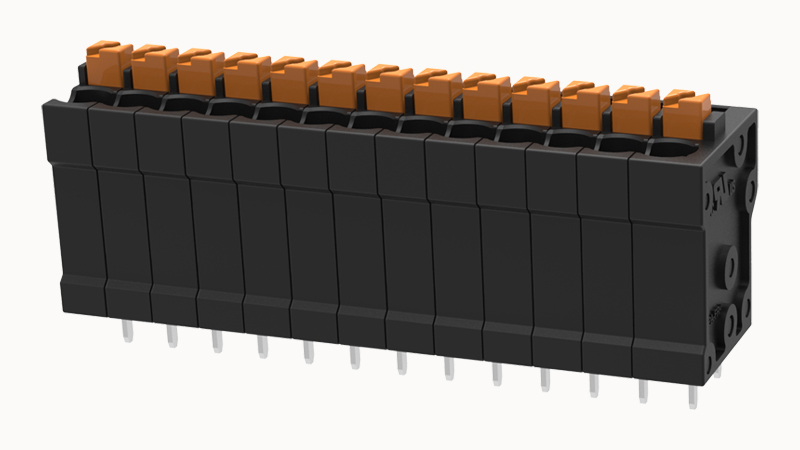

DEGSON DG266-3.5-13P

Ambient temperature (assembly)

-5℃~100℃

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Ambient temperature (storage/transportation)

-40℃~70℃

Packing unit

300

Products weight (without packaging)

10.916

Relative humidity (storage/transport)

30% ~ 70%

Test Specification

IEC60947/UL1059

Shell color

Black

Insulation Materials

PA66

Contact zone metal surface

tin-plated

Contact point metal surface

tin-plated

Contact Materials

copper

Environmental items

Compliant with REACH/RoHS

Pluggable or not

no

Number of potentials

13

Pin arrangement

Double-row in a straight line

Type of installation

PCB welding

Rated surge voltage(II/2)

2.5KV

Rated surge voltage(III/2)

2.5KV

Rated surge voltage(III/3)

2.5KV

Rated voltage(II/2)

320V

Rated voltage(III/2)

160V

Rated voltage(III/3)

160V

Rated current (C)

10A

Rated current (D)

10A

Rated current (B)

10A

Rated voltage (D)

300V

Rated voltage (B)

300V

Strip length

10mm

AWG

28~16AWG

Conductor cross section flexible

0.2~1.5mm²

Conductor cross section solid

0.2~1.5mm²

Type of packaging

box-packed

Number of rows

1

螺距

3.5mm

Rated current

10A

Connection method

Push-in spring connection

Rated voltage

160V

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
