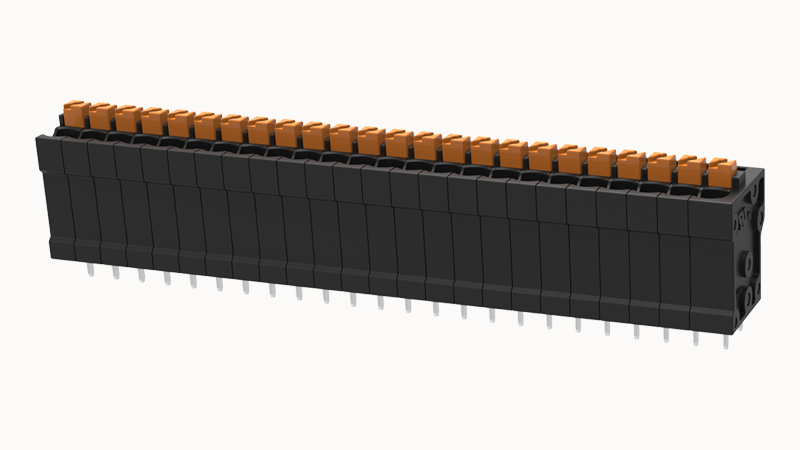

DEGSON DG266-3.5-24P

Type of packaging

box-packed

Conductor cross section solid

0.2~1.5mm²

Conductor cross section flexible

0.2~1.5mm²

AWG

28~16AWG

Strip length

10mm

Rated voltage (B)

300V

Rated voltage (D)

300V

Rated current (B)

10A

Rated current (D)

10A

Rated current (C)

10A

Products weight (without packaging)

19.955

Packing unit

180

Ambient temperature (storage/transportation)

-40℃~70℃

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Ambient temperature (assembly)

-5℃~100℃

Relative humidity (storage/transport)

30% ~ 70%

Test Specification

IEC60947/UL1059

Shell color

Black

Insulation Materials

PA66

Contact zone metal surface

tin-plated

Contact point metal surface

tin-plated

Contact Materials

copper

Environmental items

Compliant with REACH/RoHS

Pluggable or not

no

Number of potentials

24

Pin arrangement

Double-row in a straight line

Type of installation

PCB welding

Rated surge voltage(II/2)

2.5KV

Rated surge voltage(III/2)

2.5KV

Rated surge voltage(III/3)

2.5KV

Rated voltage(II/2)

320V

Rated voltage(III/2)

160V

Rated voltage(III/3)

160V

Number of rows

1

螺距

3.5mm

UL可燃性规范

UL94V-0

Rated current

10A

Connection method

Push-in spring connection

Rated voltage

160V

过程

Wave soldering/manual soldering
