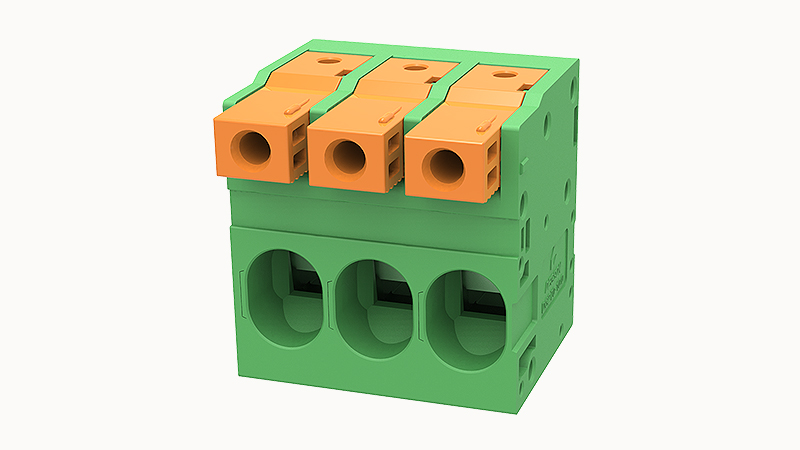

DEGSON DG270-10.0-DA-03P

Rated voltage(III/3)

1000V

Rated voltage(III/2)

1000V

Rated voltage(II/2)

1000V

Rated surge voltage(III/3)

8KV

Rated surge voltage(III/2)

8KV

Rated surge voltage(II/2)

8KV

Connection direction

0°

Number of potentials

3

Pluggable or not

no

Environmental items

Compliant with REACH/RoHS

Insulation Materials

PA66

Insulating material group

Ⅰ

Test Specification

IEC61984/ UL1059

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Coding strip

/

Bridge

/

Marking strip

/

Operating tool

/

Screwdriver

/

Packing unit

0

Products weight (without packaging)

10.15

Number of rows

1

螺距

10mm

Rated current

76A

Rated voltage

1000V

Flammability rating

UL94V-0
