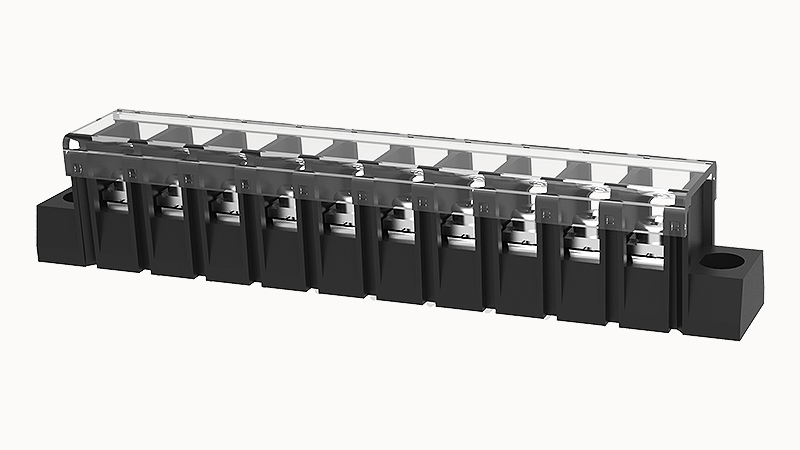

DEGSON DG28S-A-10P

AWG

22~14AWG

Torque

0.5N.m

Rated voltage (B)

300V

Rated voltage (C)

150V

Products weight (without packaging)

21.11

Packing unit

135

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Test Specification

UL1059

Insulating material group

II

Insulation Materials

PA66

Contact point metal surface

tin-plated

Contact Materials

Copper alloy

Environmental items

Compliant with REACH/RoHS

Pluggable or not

no

Number of potentials

10

Screwdriver

slotted-phillips screwdriver

Pin arrangement

Single row in a straight line

Type of installation

PCB welding

Rated current (C)

15A

Rated current (D)

10A

Rated current (B)

15A

Rated voltage (D)

300V

Number of rows

1

螺距

7.62mm

Rated current

Rated current;24A

screw thread

M3

Connection method

Screw connection

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
