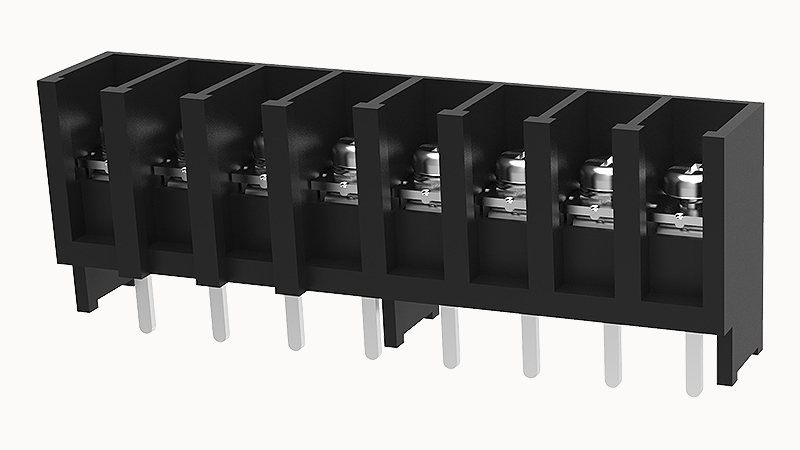

DEGSON DG31-B-08P

AWG

18~10AWG

Torque

1.2N.m

Rated voltage (B)

300V

Rated voltage (C)

300V

Products weight (without packaging)

40.6

Packing unit

80

Ambient temperature (operation)

-40℃~120℃(depending on derating curve)

Test Specification

UL1059

Insulating material group

II

Insulation Materials

PA66

Contact point metal surface

tin-plated

Contact Materials

Copper alloy

Environmental items

Compliant with REACH/RoHS

Pluggable or not

no

Number of potentials

8

Screwdriver

slotted-phillips screwdriver

Pin arrangement

Single row in a straight line

Type of installation

PCB welding

Rated current (C)

30A

Rated current (D)

5A

Rated current (B)

30A

Rated voltage (D)

600V

Number of rows

1

螺距

10mm

Rated current

Rated current;41A

screw thread

M4

Connection method

Screw connection

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
