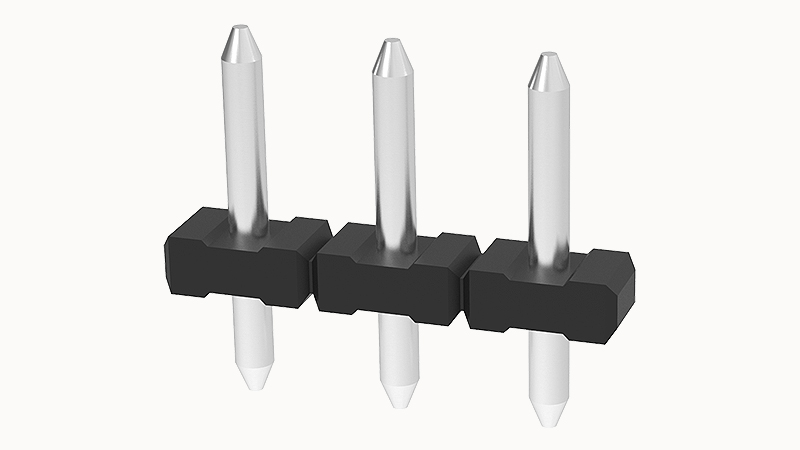

DEGSON DG332J-5.0-03P

Products weight (without packaging)

#N/A

Packing unit

#N/A

Marking strip

/

Bridge

/

Coding strip

/

Operating tool

/

Screwdriver

/

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Test Specification

UL1059/IEC60998

Insulating material group

Ⅲa

Insulation Materials

PA66

Contact zone metal surface

tin-plated

Contact Materials

Copper alloy

Environmental items

Compliant with REACH/RoHS

Pluggable or not

有

Number of potentials

3

Pin arrangement

Single row in a straight line

Type of installation

PCB welding

Connection direction

90°

Rated surge voltage(III/2)

2KV

Rated voltage(III/2)

250V

Rated current (B)

10A

Rated voltage (B)

300V

Number of rows

1

螺距

5mm

Rated current

12A

Rated voltage

250V

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
