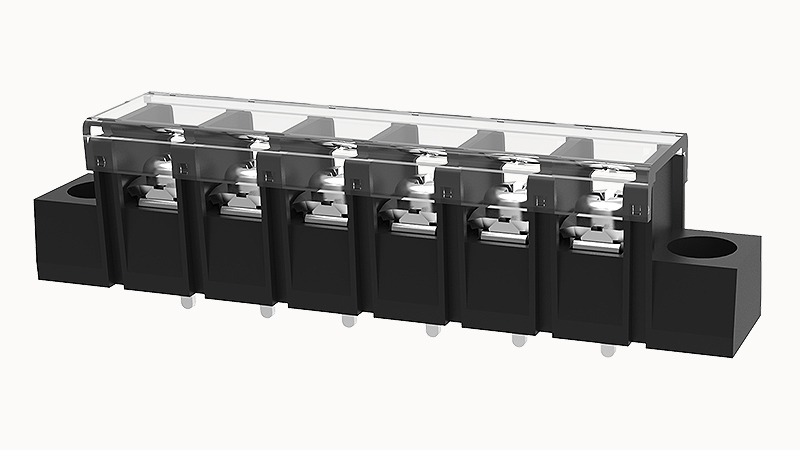

DEGSON DG58C-A-06P

Type of installation

PCB welding

Pin arrangement

Single row in a straight line

Screwdriver

slotted-phillips screwdriver

Number of potentials

6

Pluggable or not

no

Rated current (C)

20A

Rated current (D)

10A

Rated current (B)

20A

Rated voltage (D)

300V

Rated voltage (C)

150V

Rated voltage (B)

300V

Torque

1.2N.m

AWG

22~12AWG

Products weight (without packaging)

24.83

Packing unit

145

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Test Specification

UL1059

Insulating material group

II

Insulation Materials

PA66

Contact point metal surface

tin-plated

Contact Materials

Copper alloy

Environmental items

Compliant with REACH/RoHS

Number of rows

1

螺距

10mm

Rated current

Rated current;32A

screw thread

M4

Connection method

Screw connection

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
