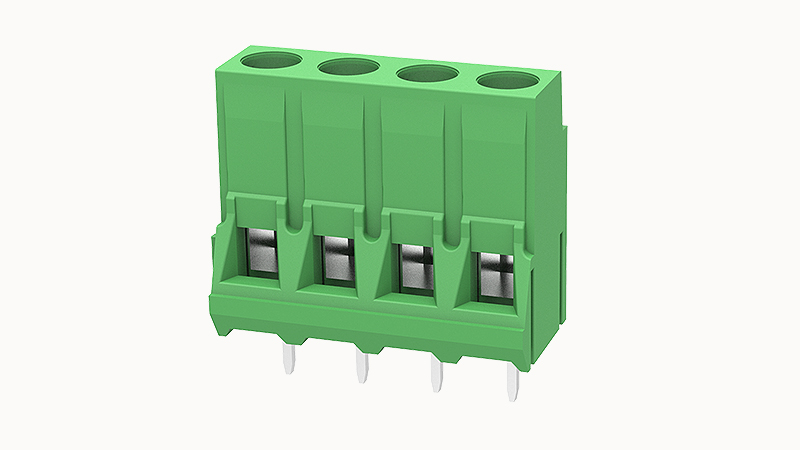

DEGSON DG635-6.35-04P

Rated voltage(III/2)

450V

Rated power frequency voltage(1min)

2.5KV

Connection direction

0°

Type of installation

PCB welding

Pin arrangement

Single row in a straight line

Screwdriver

Slotted screwdriver

Number of potentials

4

Pluggable or not

no

Environmental items

Compliant with REACH/RoHS

Contact Materials

copper

Contact point metal surface

tin-plated

Insulation Materials

PA66

Insulating material group

Ⅰ

Test Specification

UL1059/IEC60998

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Coding strip

/

Bridge

/

Marking strip

/

Operating tool

/

Packing unit

480

Products weight (without packaging)

10.17

Rated current (D)

10A

Rated current (B)

30A

Rated voltage (D)

300V

Rated voltage (B)

300V

Strip length

8mm

Torque

0.5N.m

AWG

26~10AWG

Conductor cross section flexible

1.5~4.0mm²

Conductor cross section solid

1.5~4.0mm²

Number of rows

1

螺距

6.35mm

Rated current

32A

screw thread

M3

Connection method

Screw connection

Rated voltage

450V

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
