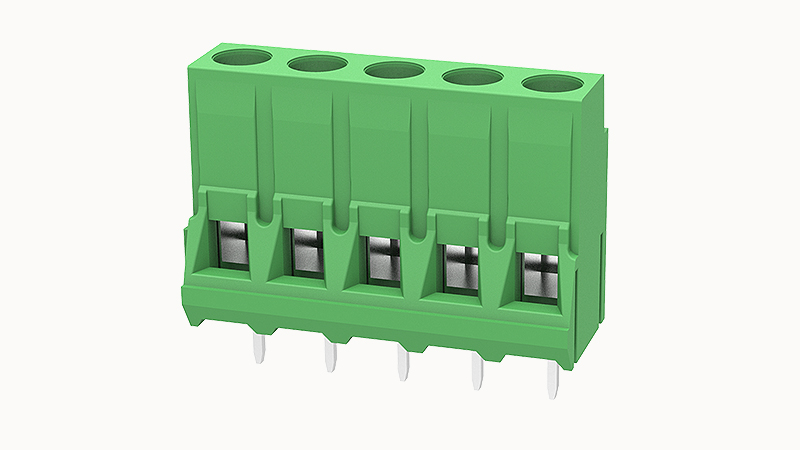

DEGSON DG635-6.35-05P

Conductor cross section solid

1.5~4.0mm²

Conductor cross section flexible

1.5~4.0mm²

AWG

26~10AWG

Torque

0.5N.m

Strip length

8mm

Rated voltage (B)

300V

Rated voltage (D)

300V

Rated current (B)

30A

Rated current (D)

10A

Products weight (without packaging)

12.71

Packing unit

375

Operating tool

/

Marking strip

/

Bridge

/

Coding strip

/

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Test Specification

UL1059/IEC60998

Insulating material group

Ⅰ

Insulation Materials

PA66

Contact point metal surface

tin-plated

Contact Materials

copper

Environmental items

Compliant with REACH/RoHS

Pluggable or not

no

Number of potentials

5

Screwdriver

Slotted screwdriver

Pin arrangement

Single row in a straight line

Type of installation

PCB welding

Connection direction

0°

Rated power frequency voltage(1min)

2.5KV

Rated voltage(III/2)

450V

Number of rows

1

螺距

6.35mm

Rated current

32A

screw thread

M3

Connection method

Screw connection

Rated voltage

450V

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
