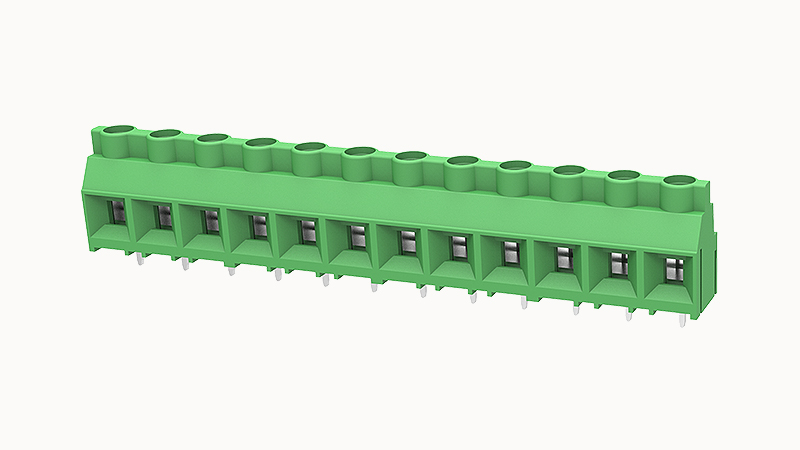

DEGSON DG636-9.52-12P

Conductor cross section solid

0.2~6mm²

Test Specification

UL1059/IEC60998

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Coding strip

/

Bridge

/

Marking strip

/

Operating tool

/

Packing unit

95

Products weight (without packaging)

34.44

Insulating material group

Ⅰ

Insulation Materials

PA66

Contact point metal surface

tin-plated

Contact Materials

Copper alloy

Environmental items

Compliant with REACH/RoHS

Pluggable or not

no

Number of potentials

12

Screwdriver

Slotted screwdriver

Pin arrangement

Single row in a straight line

Type of installation

PCB welding

Connection direction

0°

Rated power frequency voltage(1min)

3.5KV

Rated voltage(III/2)

1000V

Rated current (D)

10A

Rated current (B)

30A

Rated voltage (D)

300V

Rated voltage (B)

300V

Strip length

8mm

Torque

0.5N.m

AWG

26~10AWG

Conductor cross section flexible

0.2~4.0mm²

Number of rows

1

螺距

9.52mm

Rated current

32A

screw thread

M3

Connection method

Screw connection

Rated voltage

1000V

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
