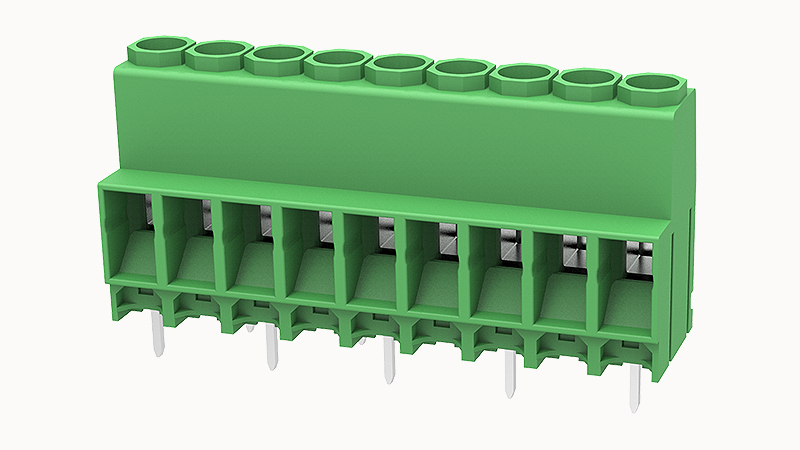

DEGSON DG637-6.35-09P

Conductor cross section solid

0.2~6mm²

Conductor cross section flexible

0.2~4.0mm²

AWG

28~10AWG

Products weight (without packaging)

29.97

Packing unit

160

Operating tool

/

Marking strip

/

Bridge

/

Coding strip

/

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Test Specification

IEC60947/UL1059

Insulating material group

Ⅰ

Insulation Materials

PA66

Contact point metal surface

tin-plated

Contact Materials

copper

Environmental items

Compliant with REACH/RoHS

Pluggable or not

no

Number of potentials

9

Screwdriver

Slotted screwdriver

Type of installation

PCB welding

Connection direction

0°

Rated surge voltage(II/2)

8KV

Rated surge voltage(III/2)

8KV

Rated surge voltage(III/3)

8KV

Rated voltage(II/2)

1000V

Rated voltage(III/2)

630V

Rated voltage(III/3)

500V

Rated current (C)

30A

Rated current (D)

5A

Rated current (B)

30A

Rated voltage (D)

600V

Rated voltage (C)

600V

Rated voltage (B)

600V

Strip length

8mm

Torque

0.5N.m

Number of rows

1

螺距

6.35mm

Rated current

32A

screw thread

M3

Connection method

Screw connection

Rated voltage

630V

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
