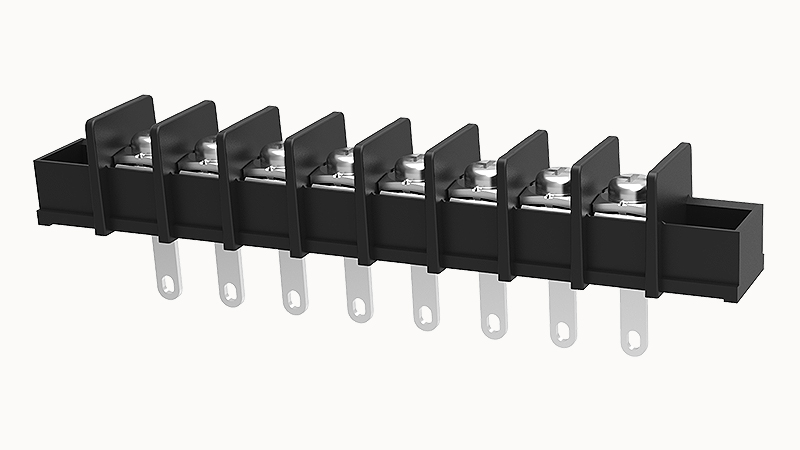

DEGSON DG65H-A-08P

AWG

22~10AWG

Torque

1.2N.m

Packing unit

90

Products weight (without packaging)

47.5

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Test Specification

UL1059

Insulating material group

Ⅰ

Insulation Materials

PA66

Contact point metal surface

tin-plated

Contact Materials

Copper alloy

Environmental items

Compliant with REACH/RoHS

Pluggable or not

no

Number of potentials

8

Screwdriver

slotted-phillips screwdriver

Pin arrangement

Single row in a straight line

Type of installation

PCB welding

Rated current (D)

10A

Rated current (B)

30A

Rated voltage (D)

300V

Rated voltage (B)

300V

Number of rows

1

螺距

11mm

Rated current

Rated current;32A

screw thread

M4

Connection method

Screw connection

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
