DEGSON DG75-A-03P
- 收藏
- 对比
DG75-A-03P
637-DG75-A-03P
端子板 - 隔板块
--
大陆
立即发货

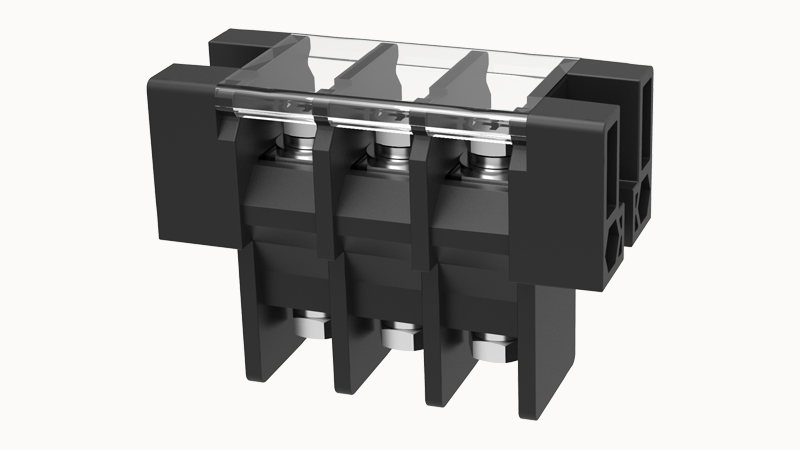

Up and down transfer terminal, nominal current: 75A. Rated voltage (UL): 600V, rated cross section: 22~4AWG, pitch: 16mm, color: black, contact surface: tin
1最小包装量--
请发送询价，我们将立即回复。
在线咨询
DG75-A-03P详情
DEGSON DG75-A-03P重要参数规格及、参数值，及相似型号如下：
- 参数名参数值全选
- 参数名参数值全选
torque
5N.m
Rated voltage (B)
600V
Rated voltage (C)
600V
Rated voltage (D)
600V
Rated current (D)
5A
AWG
22~4AWG
Type of installation
panel
Pin arrangement
Single row in a straight line
Screwdriver
Phillips screwdriver
Number of potentials
3
Pluggable or not
no
Environmental items
Compliant with REACH/RoHS
Contact Materials
copper
Contact point metal surface
Nickel plating
Insulation Materials
PBT
Insulating material group
Ⅲa
Test Specification
UL1059
Ambient temperature (operation)
-40℃~120℃(depending on derating curve)
Packing unit
25
Products weight (without packaging)
133.3
Number of rows
1
螺距
16mm
screw thread
M6
Connection method
Screw connection
Flammability rating
UL94V-0
