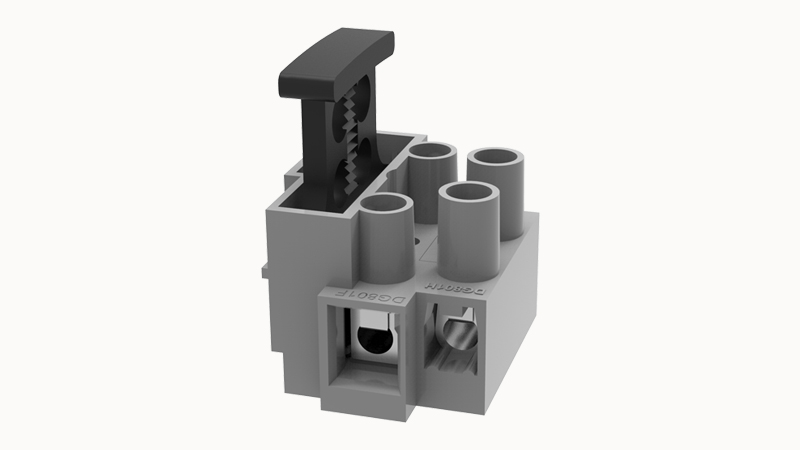

DEGSON DG801-02P

Conductor cross section solid

0.5~2.5mm²

Conductor cross section flexible

0.5~2.5mm²

AWG

22~14AWG

Torque

0.5N.m

Strip length

6mm

Rated voltage (B)

300V

Rated voltage (D)

300V

Rated current (B)

6.3A

Rated current (D)

6.3A

Rated voltage(III/2)

250V

Rated power frequency voltage(1min)

2.5KV

Type of installation

panel

Screwdriver

Slotted screwdriver

Number of potentials

2

Pluggable or not

no

Environmental items

Compliant with REACH/RoHS

Contact Materials

Copper alloy

Contact point metal surface

Nickel plating

Insulation Materials

PA66

Insulating material group

Ⅰ

Test Specification

UL1059/IEC60998/IEC60127

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Coding strip

/

Bridge

/

Marking strip

/

Operating tool

/

Packing unit

250

Products weight (without packaging)

9

螺距

10mm

Rated current

Rated current;6.3A

screw thread

M3

Connection method

Screw connection

Flammability rating

UL94V-0
