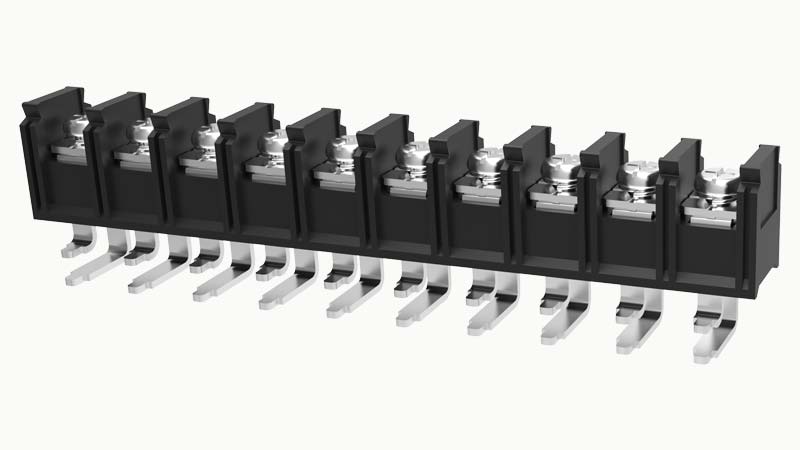

DEGSON DG88RT-10P

Connectable conductor cross section

22~3AWG

Rated voltage (B)

600V

Rated voltage (C)

600V

Rated voltage (D)

600V

Rated current (B)

100A

Rated current (D)

5A

Rated current (C)

100A

Type of installation

PCB welding

Pin arrangement

Single row in a straight line

Screwdriver

slotted-phillips screwdriver

Number of potentials

11

Pluggable or not

no

Environmental items

Compliant with REACH/RoHS

Contact Materials

copper

Contact point metal surface

tin-plated

Insulation Materials

PA66

Insulating material group

II

Test Specification

UL1059

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Packing unit

5

Products weight (without packaging)

186.67

Number of rows

1

螺距

16mm

Rated current

Rated current;101A

screw thread

M6

Connection method

Screw connection

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
