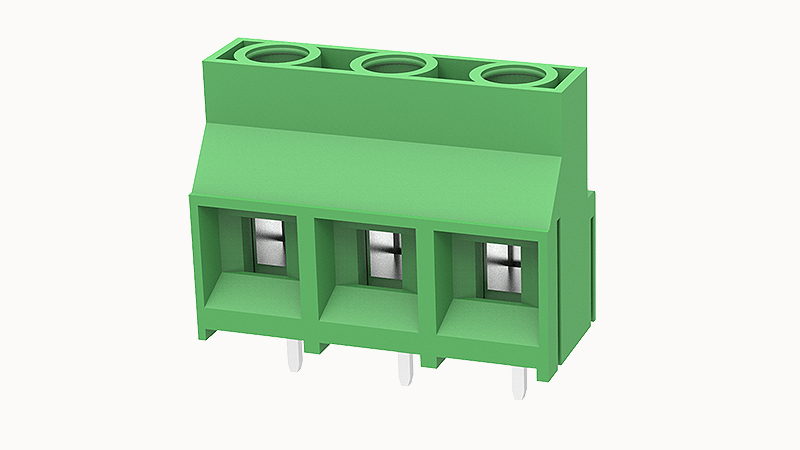

DEGSON DG950-9.5-03P

Products weight (without packaging)

8.55

Packing unit

50

Operating tool

/

Marking strip

/

Bridge

/

Coding strip

/

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Test Specification

UL1059/IEC60998

Insulating material group

Ⅰ

Insulation Materials

PA66

Contact point metal surface

tin-plated

Contact Materials

Copper alloy

Environmental items

Compliant with REACH/RoHS

Pluggable or not

no

Number of potentials

3

Screwdriver

Slotted screwdriver

Pin arrangement

Single row in a straight line

Type of installation

PCB welding

Connection direction

0°

Rated power frequency voltage(1min)

3KV

Rated voltage(III/2)

750V

Rated current (C)

30A

Rated current (D)

10A

Rated current (B)

30A

Rated voltage (D)

300V

Rated voltage (C)

300V

Rated voltage (B)

300V

Strip length

8mm

Torque

0.5N.m

AWG

26~10AWG

Conductor cross section flexible

1.5~4.0mm²

Conductor cross section solid

1.5~4.0mm²

Number of rows

1

螺距

9.5mm

UL可燃性规范

UL94V-0

Rated current

26A

screw thread

M3

Connection method

Screw connection

Rated voltage

750V

过程

Wave soldering/manual soldering
