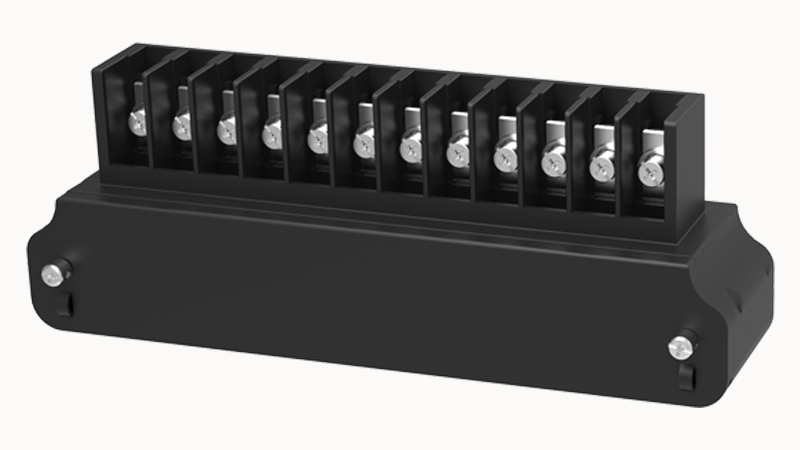

DEGSON DG97-A-12P

torque

3N.m

Connectable conductor cross section

22~3AWG

spacing

12mm

Rated voltage (B)

300V

Rated voltage (C)

300V

Rated voltage (D)

300V

Rated current (B)

60A

Rated current (D)

10A

Rated current (C)

60A

Type of installation

panel

Pin arrangement

Double-row in a straight line

Screwdriver

Phillips screwdriver

Number of potentials

12

Pluggable or not

no

Environmental items

Compliant with REACH/RoHS

Contact Materials

Copper alloy

Contact point metal surface

tin-plated

Insulation Materials

PC

Insulating material group

Ⅲa

Test Specification

UL1059

Ambient temperature (operation)

-40℃~125℃

Number of rows

1

screw thread

M6

Connection method

Screw connection

Flammability rating

UL94V-0
