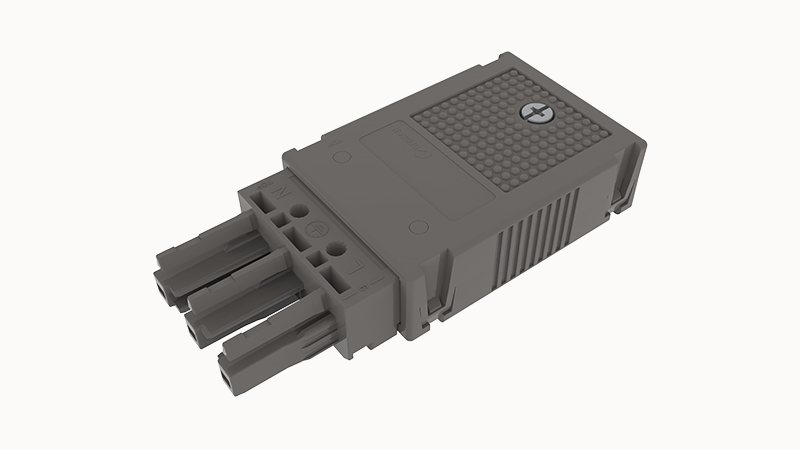

DEGSON DGBSC-PG03M/4-PB-03P

Rated voltage (III / 3)

250V

Rated current(III/3)

24A

Rated surge voltage

4KV

Conductor cross section solid

0.5~4mm²

Conductor cross section flexible

0.5~4.0mm²

AWG

20~12AWG

Strip length

9mm

Rated voltage (B)

600V

Rated current (B)

22A

Environmental items

Compliant with REACH/RoHS

Contact Materials

copper

Contact point metal surface

tin-plated

Insulation Materials

PA66

Shell color

Black

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Packing unit

60

Products weight (without packaging)

20.9

Flammability rating

UL94V-0
