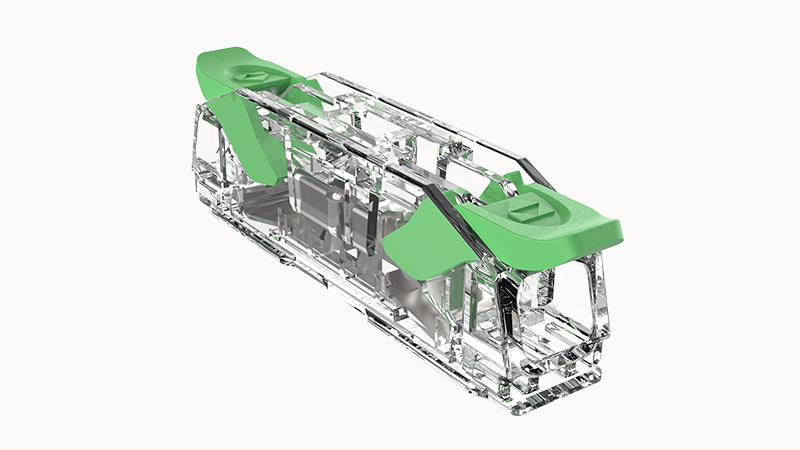

DEGSON DGBSC-SG02/4

Conductor cross section solid

0.2~4mm²

Conductor cross section flexible

0.2~4.0mm²

AWG

24~12AWG

Strip length

12mm

Rated voltage (C)

600V

Rated voltage(III/2)

450V

Rated power frequency voltage(1min)

2.5KV

Number of potentials

2

Pluggable or not

no

Environmental items

Compliant with REACH/RoHS

Contact Materials

copper

Contact point metal surface

tin-plated

Contact zone metal surface

tin-plated

Insulation Materials

PC

Shell color

Transparent

Ambient temperature (operation)

-40℃~85℃(depending on derating curve)

Packing unit

100

Products weight (without packaging)

3.22

Number of rows

1

Rated current

32A

Connection method

Push-in spring connection

Rated voltage

450V

Flammability rating

UL94V-2
