DEGSON DGK12-002
- 收藏
- 对比
DGK12-002
637-DGK12-002
端子板 - 隔板块
--
大陆
立即发货

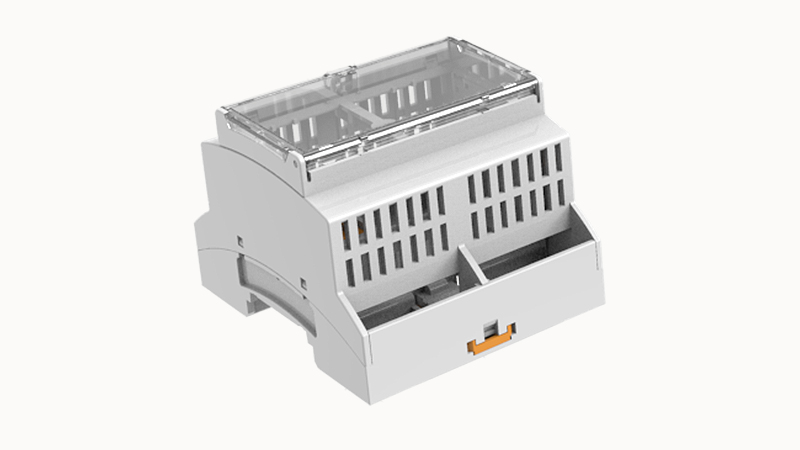

Building electronic housing ,length :71.6mm,DIN rail housing ,Can be used in distribution box comply with DIN 43880 standard , Upper housing with vent , IP class:IP20.
1最小包装量--
请发送询价，我们将立即回复。
在线咨询
DGK12-002详情
DEGSON DGK12-002重要参数规格及、参数值，及相似型号如下：
- 参数名参数值全选
- 参数名参数值全选
材料
PC
Products weight (without packaging)
59.5
Packing unit
84
Ambient temperature (storage/transportation)
-40℃～ +70℃
Ambient temperature (operation)
-40℃～ +110℃
Ambient temperature (assembly)
-5℃～ +100℃
Maximum connection
44 (pitch : 2.5 mm);24 (pitch : 5 mm),16 (pitch : 7.5 mm)
with ventilation openings
有
Connection levels
1(Both sides)
IP class
IP20
PCBType of installation
Latching
Installation location
Vertical &horizontal(DIN rail)
Number of PCB holders
17（Upper cover 8+Base 9）
Depth from top edge of DIN rail
54.7mm
color
Upper housing: light graybottom housing: black
高度
60.7mm
length
89.7mm
width
71.6mm
PCB thickness
1.8mm
Flammability rating
V2
