DEGSON DGK12-003
- 收藏
- 对比
DGK12-003
637-DGK12-003
端子板 - 隔板块
--
大陆
立即发货

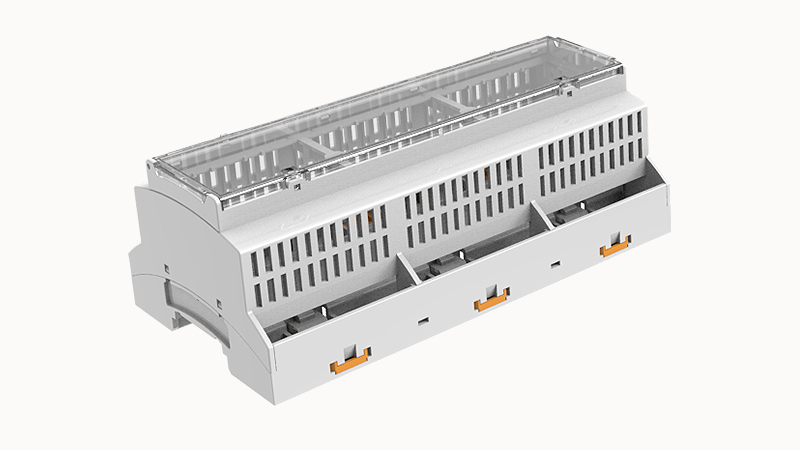

Building electronic housing ,length :161.6mm,DIN rail housing ,Can be used in distribution box comply with DIN 43880 standard , Upper housing with vent , IP class:IP20.
1最小包装量--
请发送询价，我们将立即回复。
在线咨询
DGK12-003详情
DEGSON DGK12-003重要参数规格及、参数值，及相似型号如下：
- 参数名参数值全选
- 参数名参数值全选
材料
PC
Depth from top edge of DIN rail
54.7mm
Number of PCB holders
27（Upper cover 18+Base 9）
Installation location
Vertical &horizontal(DIN rail)
PCBType of installation
Latching
IP class
IP20
Connection levels
1(Both sides)
with ventilation openings
有
Maximum connection
96 (pitch : 2.5 mm);54 (pitch : 5 mm),36 (pitch : 7.5 mm)
Ambient temperature (assembly)
-5℃～ +100℃
Ambient temperature (operation)
-40℃～ +110℃
Ambient temperature (storage/transportation)
-40℃～ +70℃
Packing unit
35
Products weight (without packaging)
111.4
color
Upper housing: light graybottom housing: black
width
161.6mm
length
89.7mm
高度
60.7mm
PCB thickness
1.8mm
Flammability rating
V2
