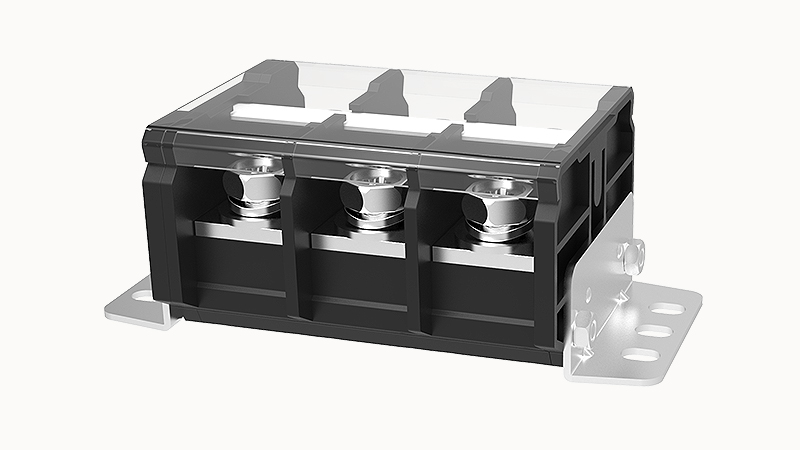

DEGSON DGR100-20A(H)-03P

AWG

20~2AWG

Rated voltage (B)

600V

Rated voltage (C)

600V

Rated voltage (D)

600V

Rated current (B)

101A

Rated current (D)

5A

Rated current (C)

101A

Type of installation

panel

Pin arrangement

Double-row in a straight line

Screwdriver

Phillips screwdriver

Number of potentials

3

Pluggable or not

no

Environmental items

Compliant with REACH/RoHS

Contact Materials

Copper alloy

Contact point metal surface

Nickel plating

Insulation Materials

PC

Insulating material group

Ⅲa

Test Specification

UL1059

Ambient temperature (operation)

-40℃~125℃(depending on derating curve)

Packing unit

4

Products weight (without packaging)

292

Number of rows

1

螺距

25mm

Rated current

Rated current;125A

screw thread

M8

Connection method

Screw connection

Flammability rating

UL94V-0
