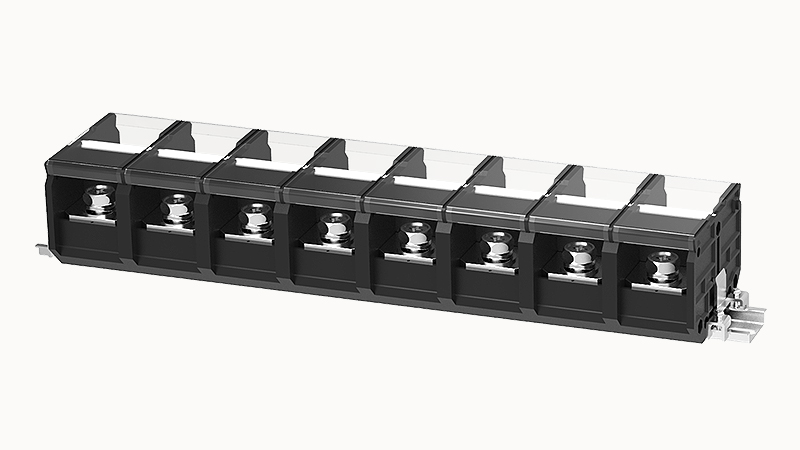

DEGSON DGR300-00A(H)-08P

Rated voltage (B)

600V

Rated voltage (C)

600V

Rated voltage (D)

600V

Rated current (B)

300A

Rated current (C)

300A

Type of installation

panel

Pin arrangement

Double-row in a straight line

Screwdriver

Phillips screwdriver

Number of potentials

8

Pluggable or not

no

Environmental items

Compliant with REACH/RoHS

Contact Materials

Copper alloy

Contact point metal surface

Nickel plating

Insulation Materials

PC

Insulating material group

Ⅲa

Test Specification

UL1059

Ambient temperature (operation)

-40℃~125℃(depending on derating curve)

Packing unit

1

Products weight (without packaging)

1986.6

Number of rows

1

螺距

45mm

Rated current

Rated current;300A

screw thread

M10

Connection method

Screw connection

Flammability rating

UL94V-0
