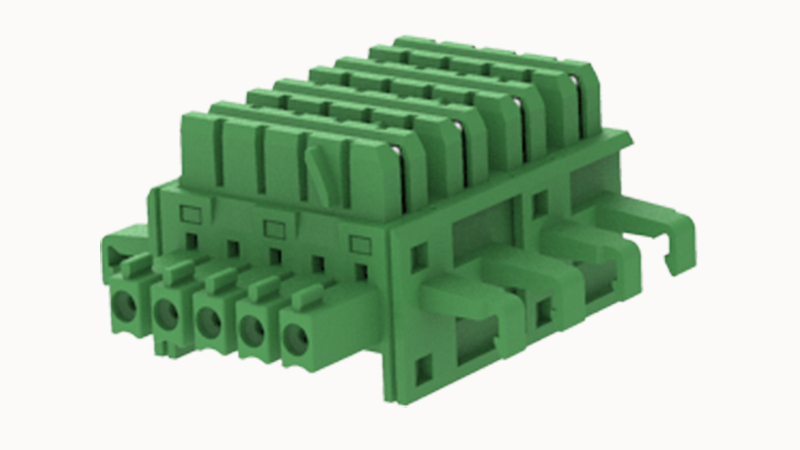

DEGSON FBUS17.5-05P

Products weight (without packaging)

3.89

Packing unit

90

Ambient temperature (storage/transportation)

-40℃～ +70℃

Ambient temperature (operation)

-40℃～ +105℃

Rated current(B) UL

7A;150V

Insert / pull out cycle

50

Test standard (standard no.)

UL1059

Insulating material group

I

Insulation Materials (main class)

PA66

Shell color

light gray

Contact zone metal surface(insert&pullout)

gold

Contact point metal surface(conductor contact with wire)

gold

Conductor material (copper / copper alloy)

Copper alloy

Environmental items(Compliant with REACH/RoHS )

有

Pluggable or not

有

Type of installation(din rail \ panel \ PCB soldering)

din rail

Number of potentials

5

Number of rows

1

螺距

3.81mm

Flammability rating

V0
