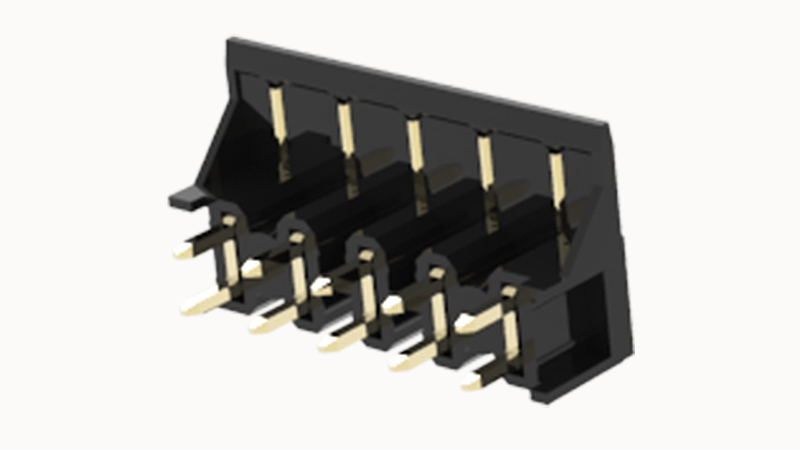

DEGSON FBUSRC-3.81

Name: FBUSRC-3.81
Brand: DEGSON
SKU: 637-FBUSRC-3.81
Availability: InStock
Rating: 5 (1 reviews)

收藏
对比

型号

FBUSRC-3.81

品牌

DEGSON

utmel 编号

637-FBUSRC-3.81

商品类别

端子板 - 隔板块

封装

交货地

大陆

交期（工作日）

立即发货

ROHS

ECAD

简介

use to mate with DIN rail bus connector,color:black,material:PA66,Flammability rating :V0,Compatible housing:FMED-02P,FMEH-02P,Compatible products:FBUS12.5-05P.

起订量

1最小包装量--

添加到询价列表

FBUSRC-3.81 DEGSON use to mate with DIN rail bus connector,color:black,material:PA66,Flammability rating :V0,Compatible housing:FMED-02P,FMEH-02P,Compatible products:FBUS12.5-05P.

请发送询价，我们将立即回复。

库存:

请发送询价，我们将立即回复。

* 联系人姓名

* 电话

* 邮箱

* 公司名称

* 数量

在线咨询

FBUSRC-3.81详情

技术参数

PDF文档

DEGSON FBUSRC-3.81重要参数规格及、参数值，及相似型号如下：

参数名

参数值

全选
参数名

参数值

全选
Number of potentials

5
Type of installation(din rail \ panel \ PCB soldering)

PCB welding
Pluggable or not

有
Process (hand soldering, reflow soldering, wave soldering)

hand soldering/reflow soldering
Environmental items(Compliant with REACH/RoHS )

有
Conductor material (copper / copper alloy)

Copper alloy
Contact point metal surface(conductor contact with wire)

gold
Contact zone metal surface(insert&pullout)

gold
Shell color

black
Insulation Materials (main class)

PA66+GF
Insulating material group

II
Test standard (standard no.)

UL1059
Insert / pull out cycle

50
Rated current(B) UL

8A;150V
Ambient temperature (operation)

-40℃～ +105℃
Ambient temperature (storage/transportation)

-40℃～ +70℃
Packing unit

400
Products weight (without packaging)

0.94
Number of rows

1
螺距

3.81mm
Flammability rating

V0
