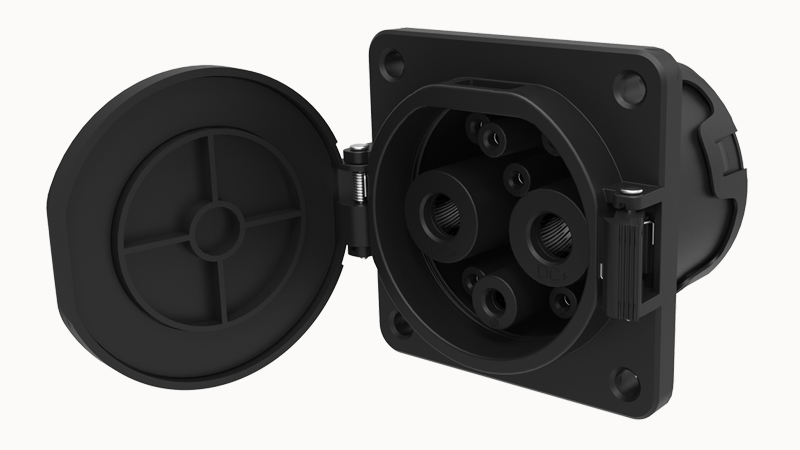

DEGSON FGDC-T-250A-V-0.0M

Mounting hole diameter

7.00 mm (ø)

Wire length

0m

Ambient temperature (operation)

－ 30 °C ~ 50 °C

Ambient temperature (storage/transportation)

－ 40 °C ~ 80 °C

Maximum altitude

5000m(Above sea level )

IP class

IP55(coupling)

Maximum charge power

250KW

Power pin quantity

9 (DC+,DC-,PE,A+,A-,S+,S-,CCS1,CCS2)

Rated current of high-power contacts

250

Power contact rated voltage

750

Quantity of signal contacts

4(S+,S-,CCS1,CCS2)

Signal contact rated current

2

Signal contact rated voltage

30

Signal transmission type

Pulse width adjustment

Connection method precautions

Crimp connection, cannot be disconnected

Temperature measurement

2x Pt 1000 (DIN EN 60751)

Insert / pull out cycle

10000

Pullout force

< 140N

Available installation location

Installation in front of the board

Limit of the installation location

Only allow 0 to 90 degrees frontal tilt

Shell color

black

Customization basis

Provided according to customer requirements

Contact surface material

Ag

Marking material

Plastic

Lock type

Secured by locking device after insertion

Recommended measured current

1 mA (1 V at 0°C )

Recommendation to measure tolerance on current sensors

±1K

Temperature coefficient (TCR)

3850 ppm/K

Shutdown temperature

90 °C Equivalent to Pt 1000 value 1346.5 Ω

REACH

conform

China RoHS

conform

Cable composition

2 x 80 mm² + 1 x 25 mm² + 2 × 4 mm² + 3× 0.75 mm²

深度

84.2mm

Temperature range

_50 °C ... 150 °C

Hole diameter

72 mm x 72 mm

Insertion force

<140N

标准

DIN EN 60751

相位

3
